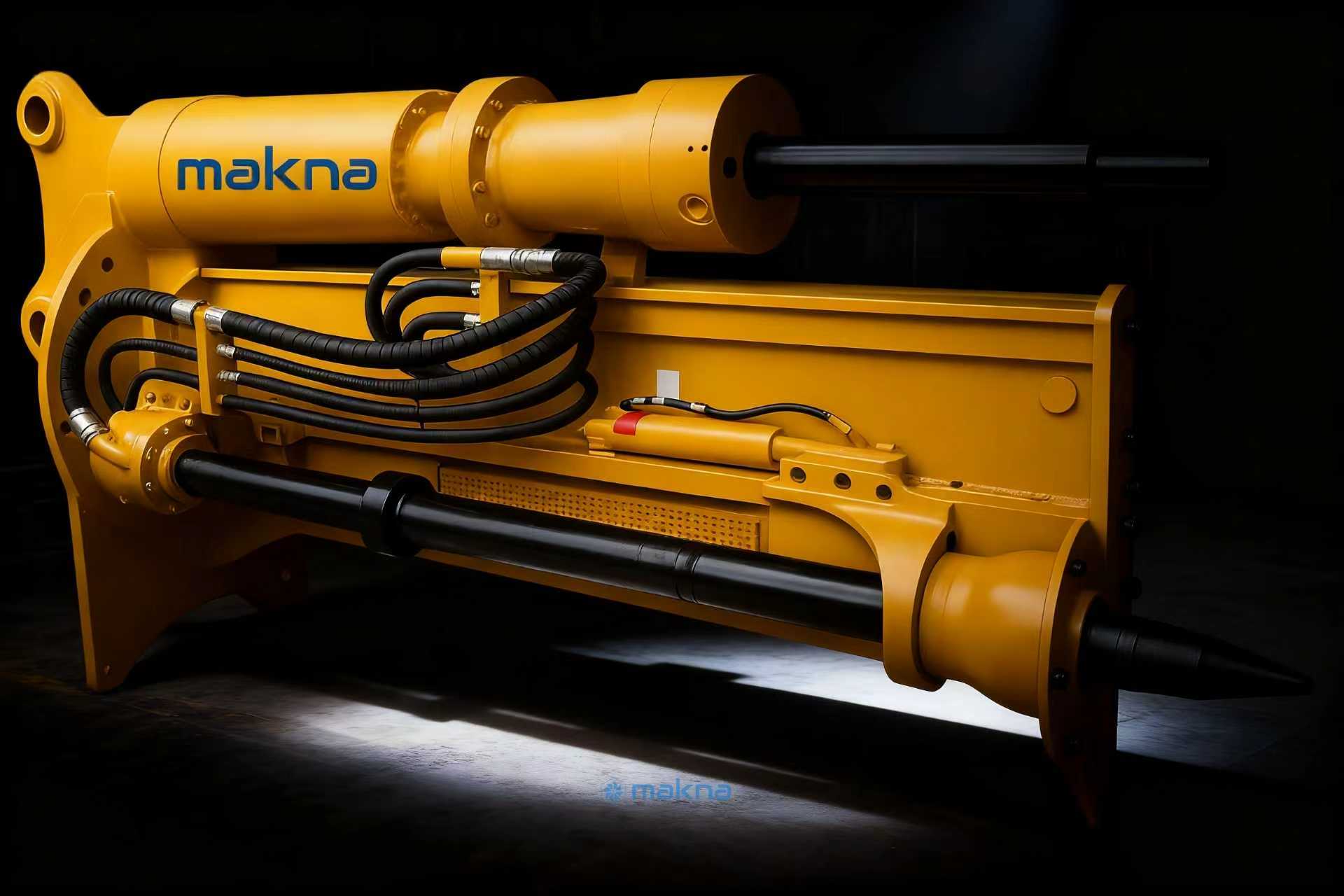

MK160H – Integrated Rock Drilling & Splitting Machine

MK160H-IRDSM

Performance version of our integrated rock drilling & splitting machine, delivering maximum speed, deeper drilling, and higher splitting force for demanding environments.

  • • High-performance non-blasting splitting
  • • 1 m/min+ drilling speed with stable hydraulic flow
  • • 360° slewing, advanced dust removal system

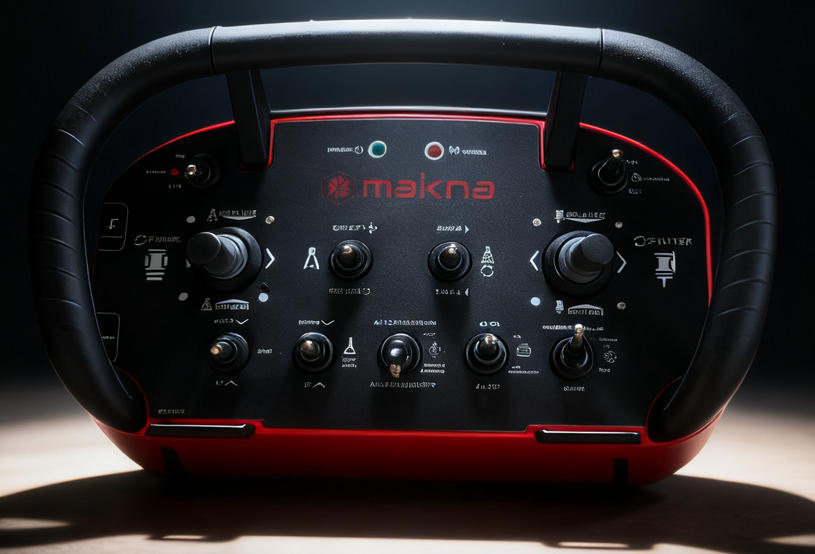

  • • Wireless remote with enhanced interlocks
  • • Built for deep quarry and large-scale excavation
  • *Performance may vary based on conditions

Technical Specifications

ParameterMAKNA MK160H
excavator35–45T
dimensions4950 × 1720 × 2200 mm
weight8.1T
diameter152 mm
depth2.0 m
speed0.8 m/min
force9000 tons
wedge2200 mm
distance30 mm
time10 sec
energy480 J
pressure180 bar
flow450 L/min
power110 kW
rated40 MPa

Gallery

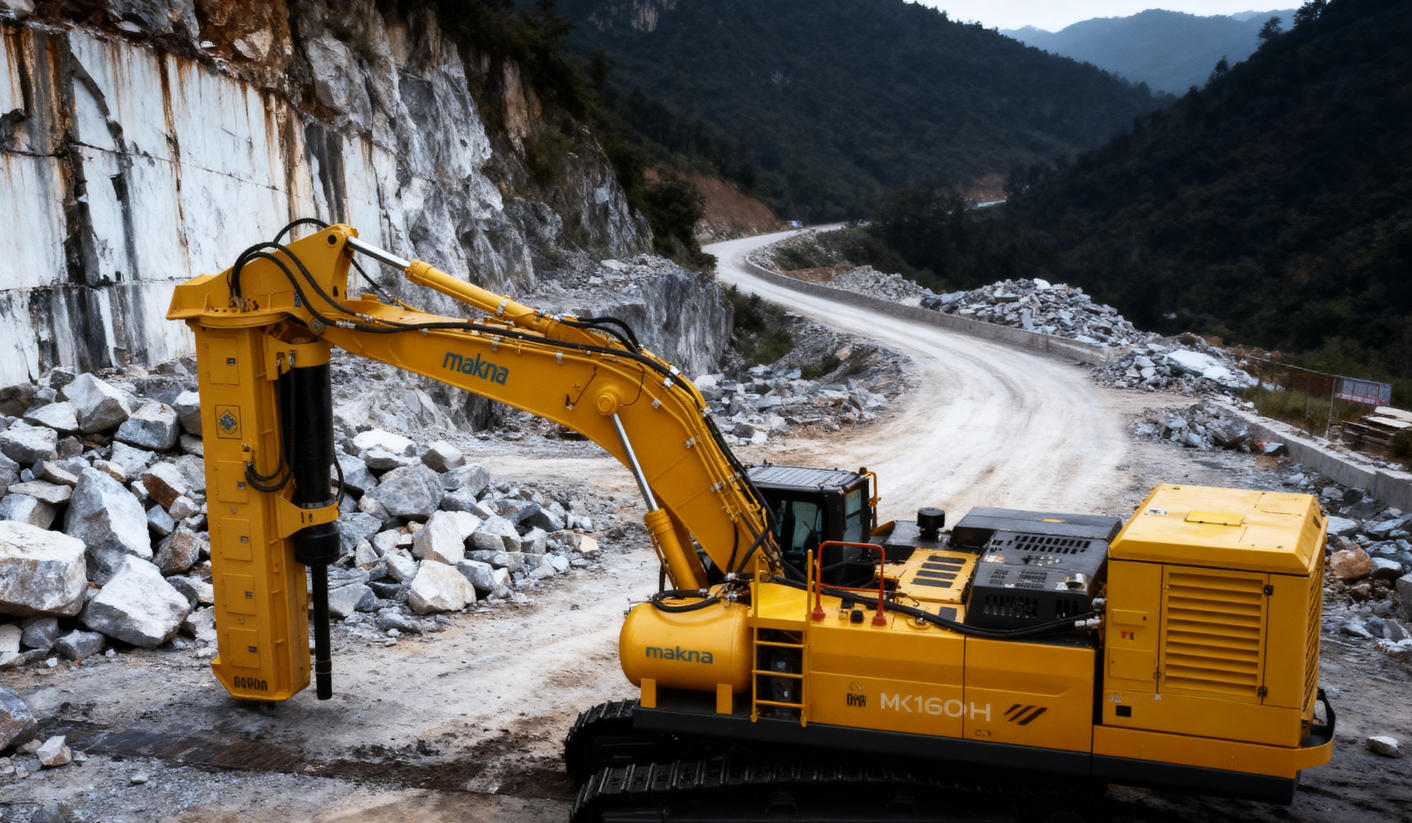

MAKNA MK160H Gallery 1

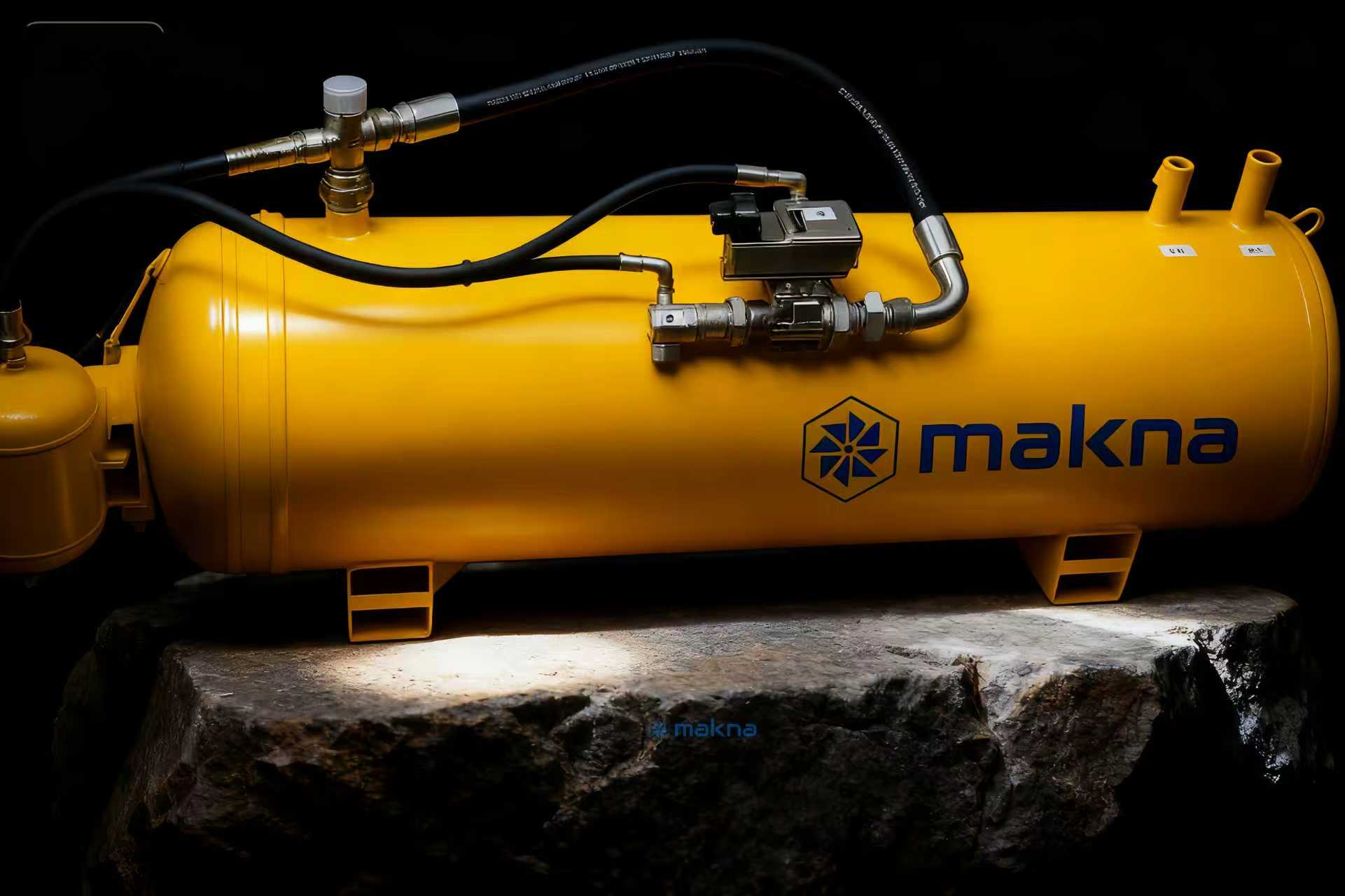

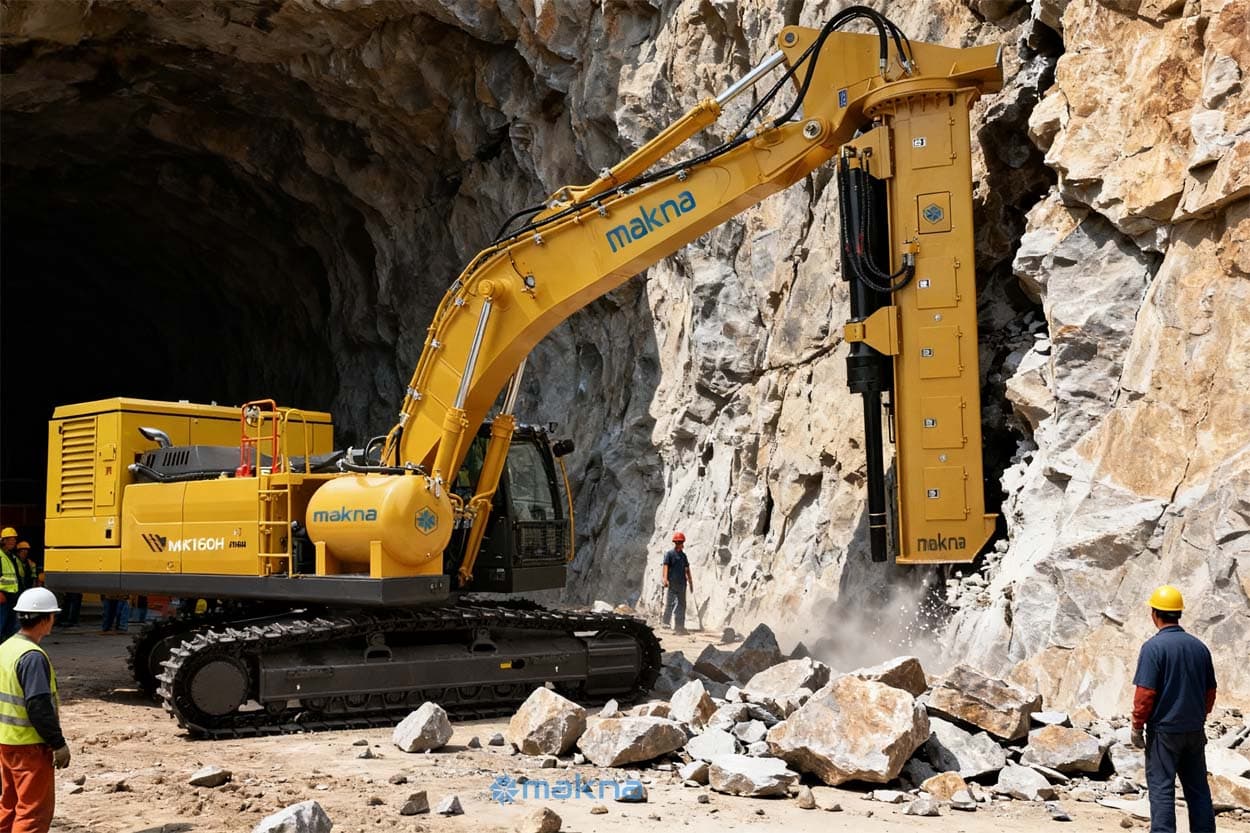

MAKNA MK160H Gallery 2

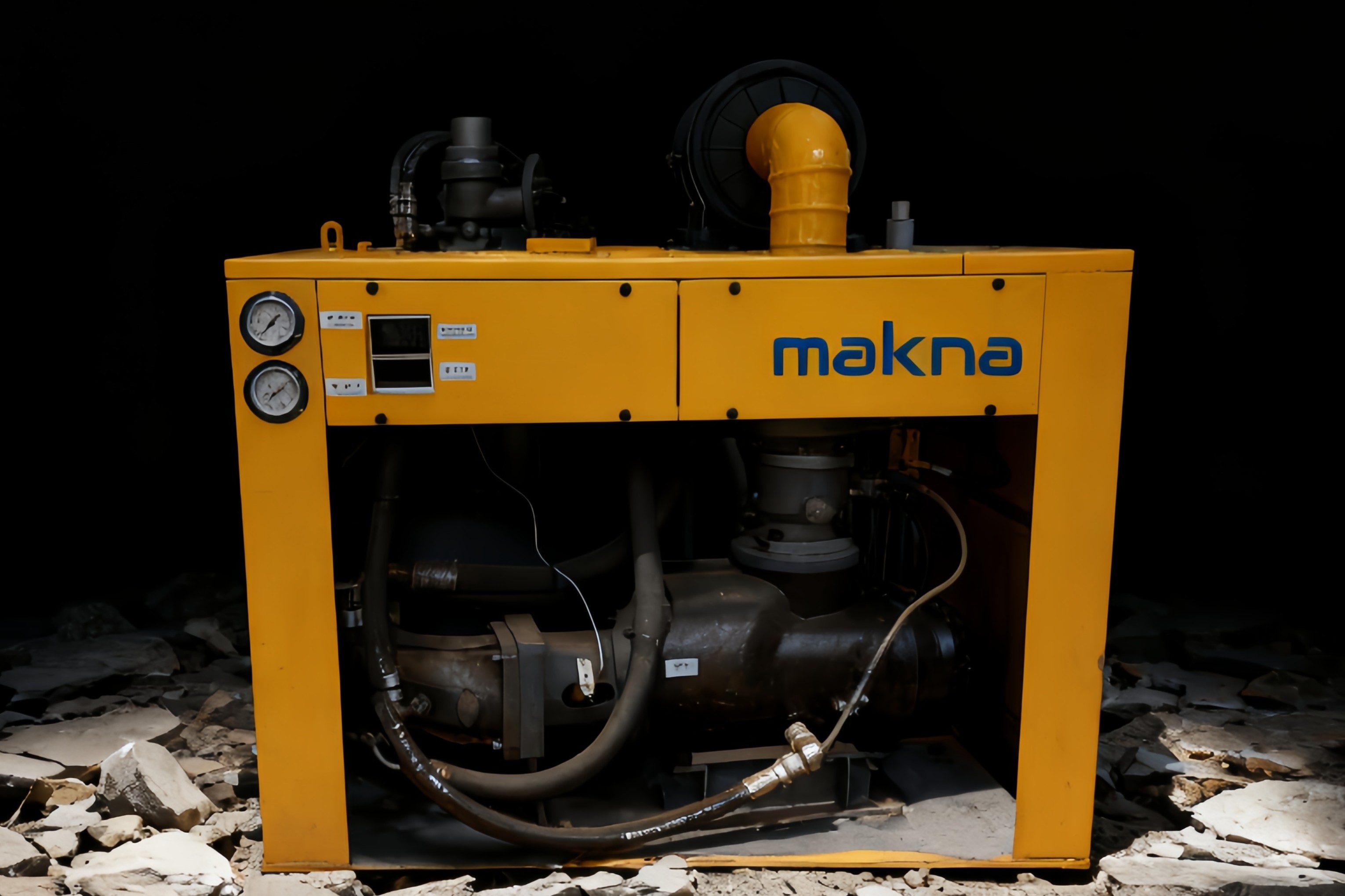

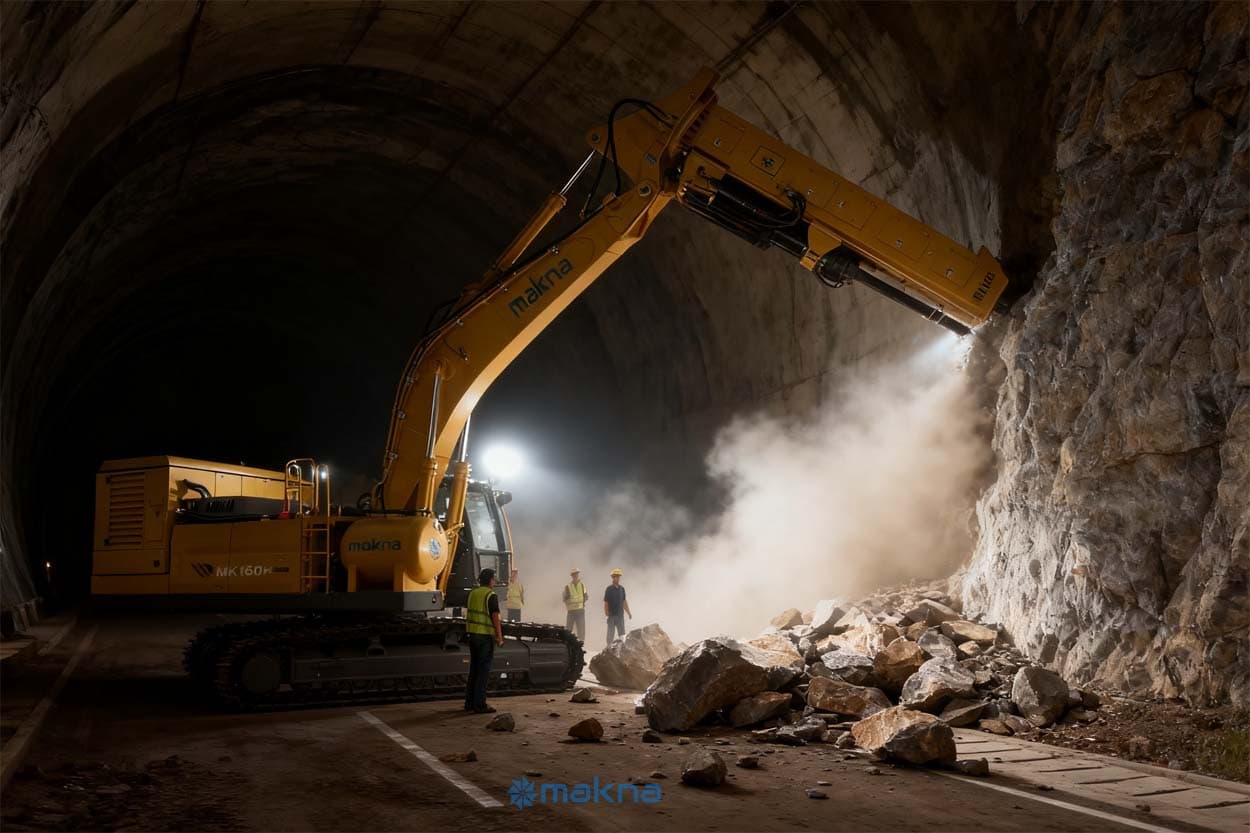

MAKNA MK160H Gallery 3

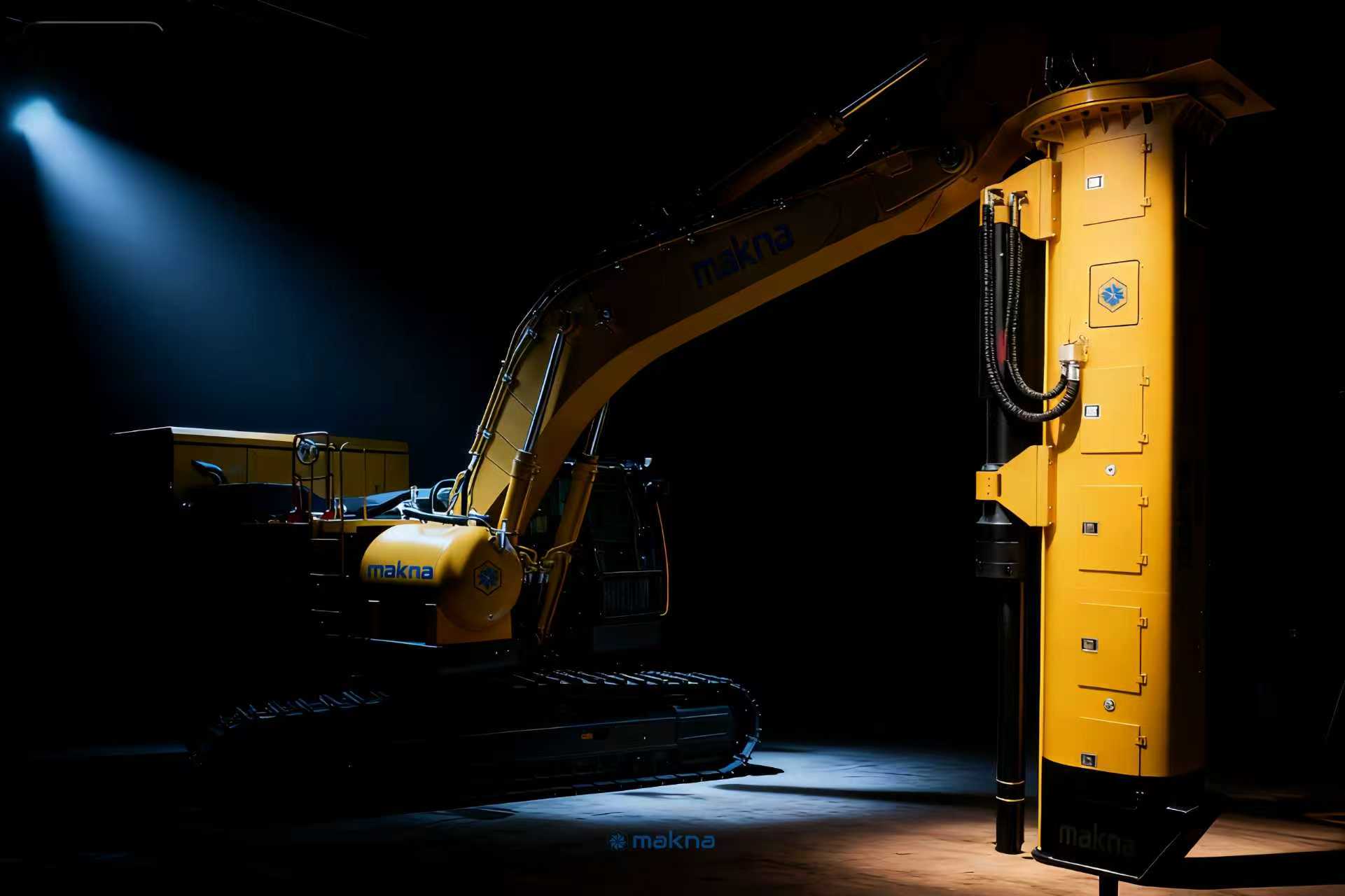

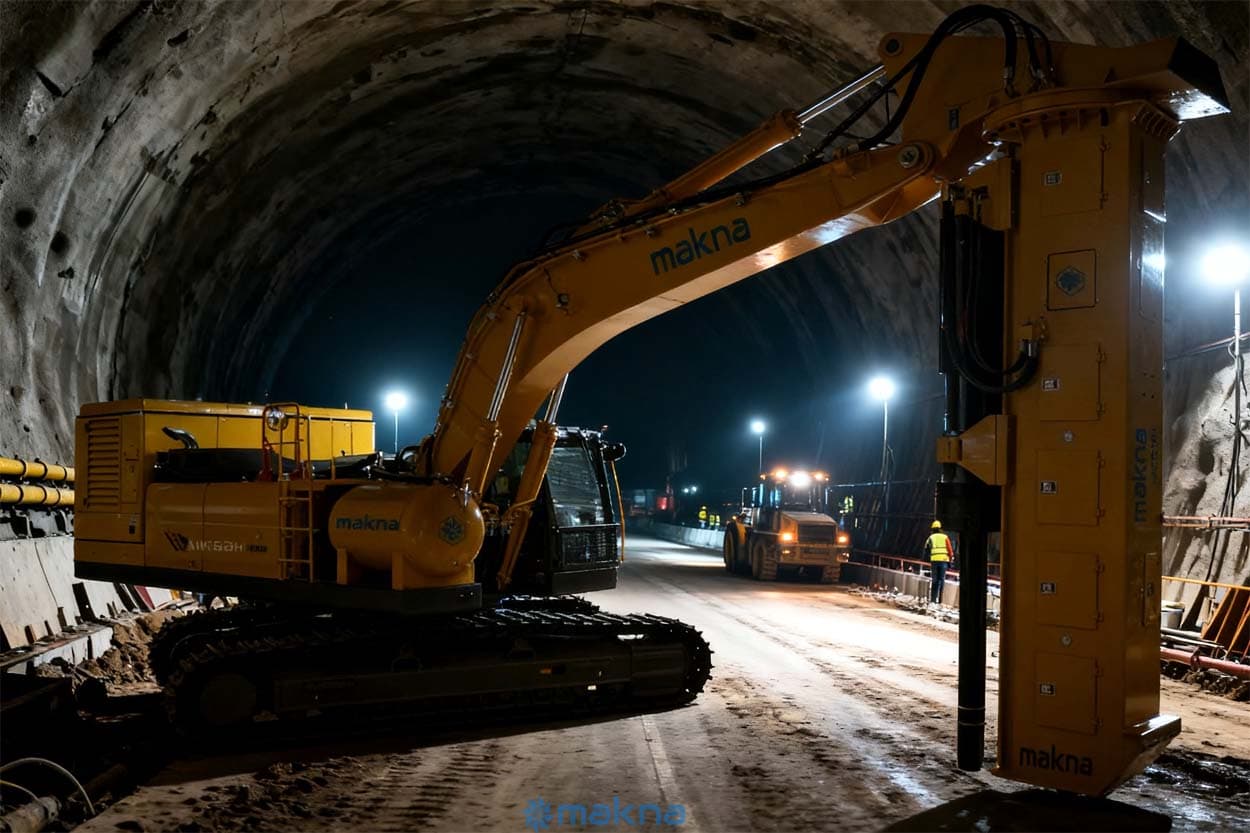

MAKNA MK160H Gallery 4

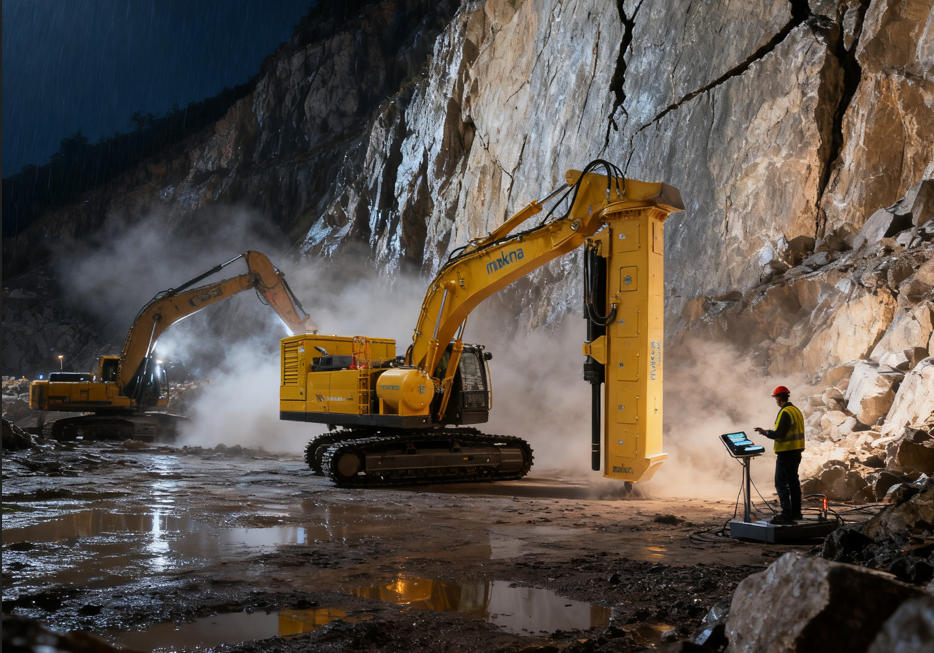

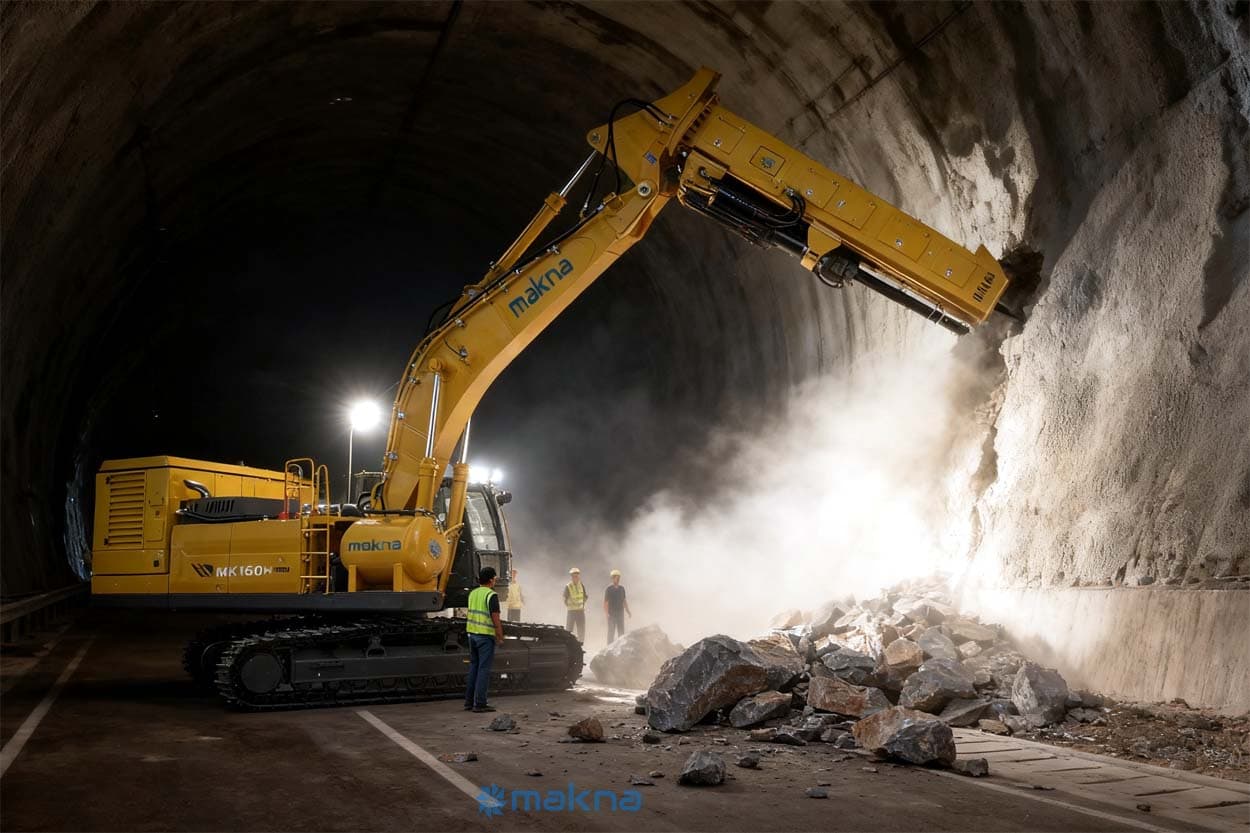

MAKNA MK160H Gallery 5

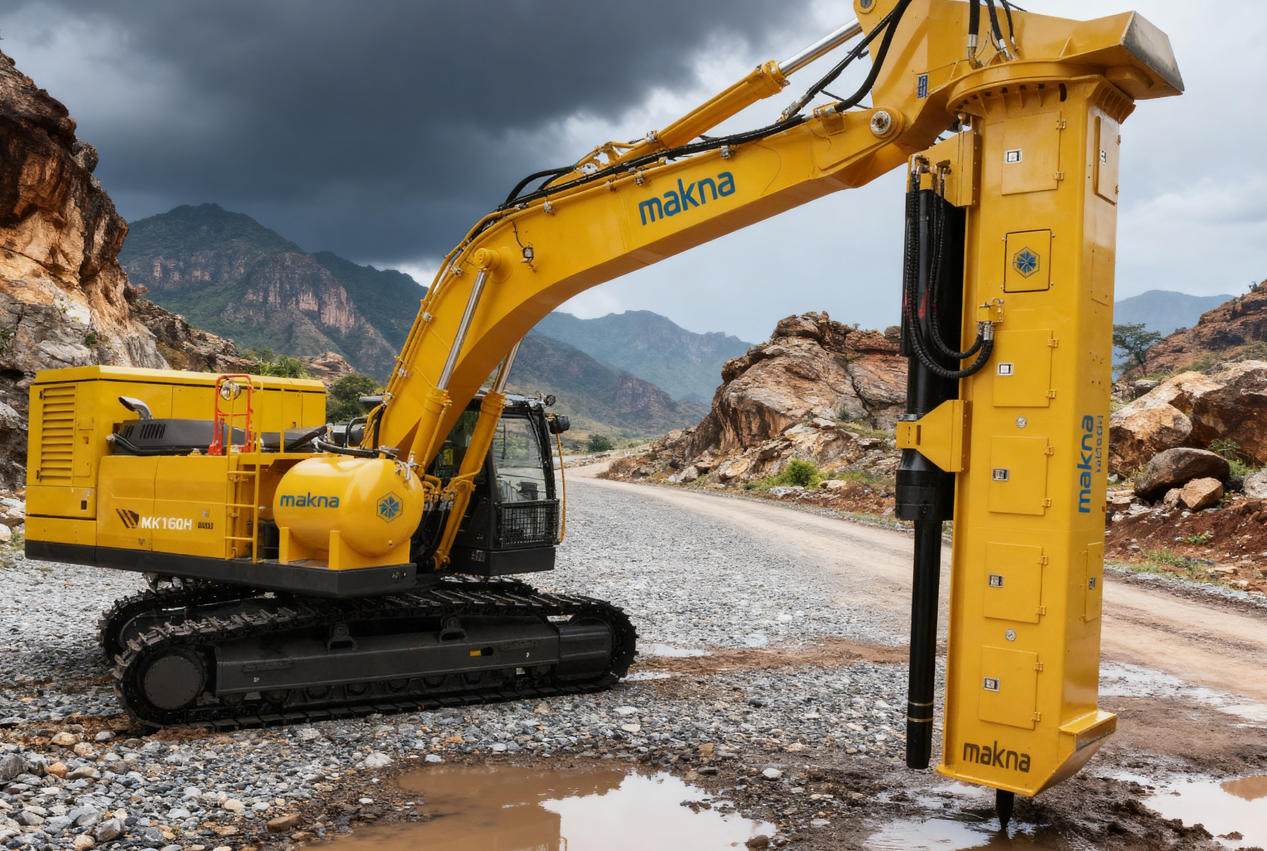

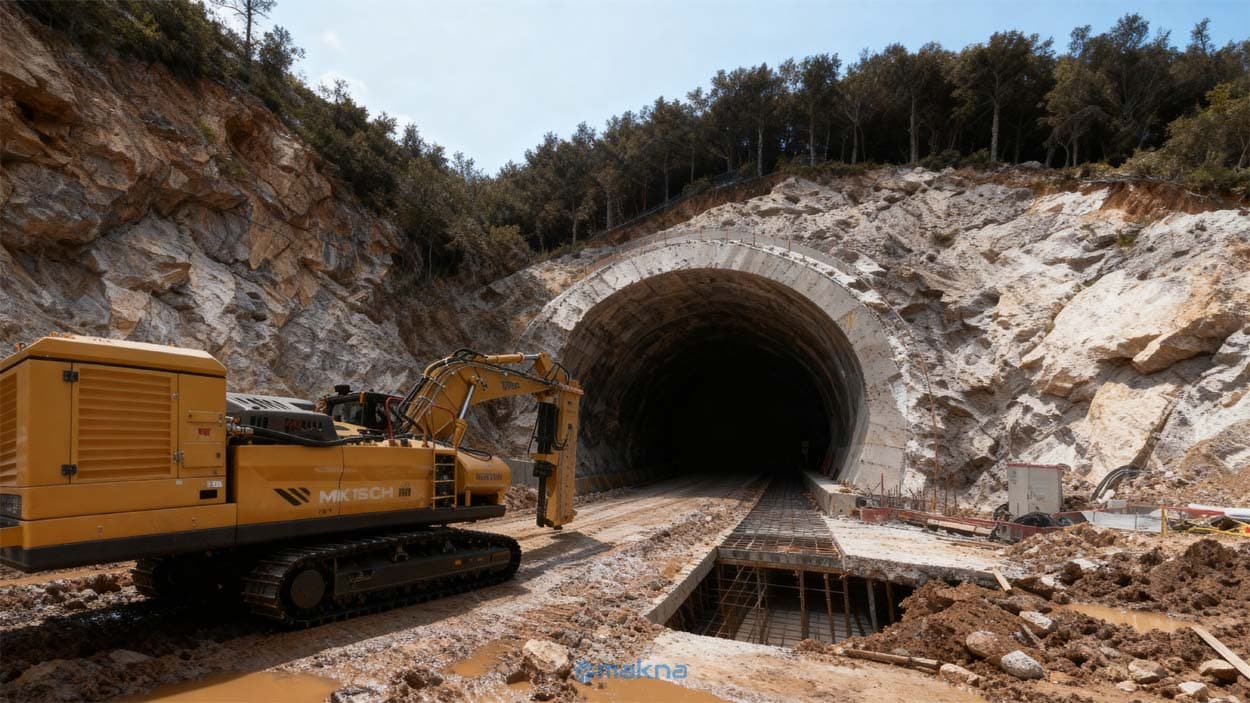

MAKNA MK160H Gallery 6

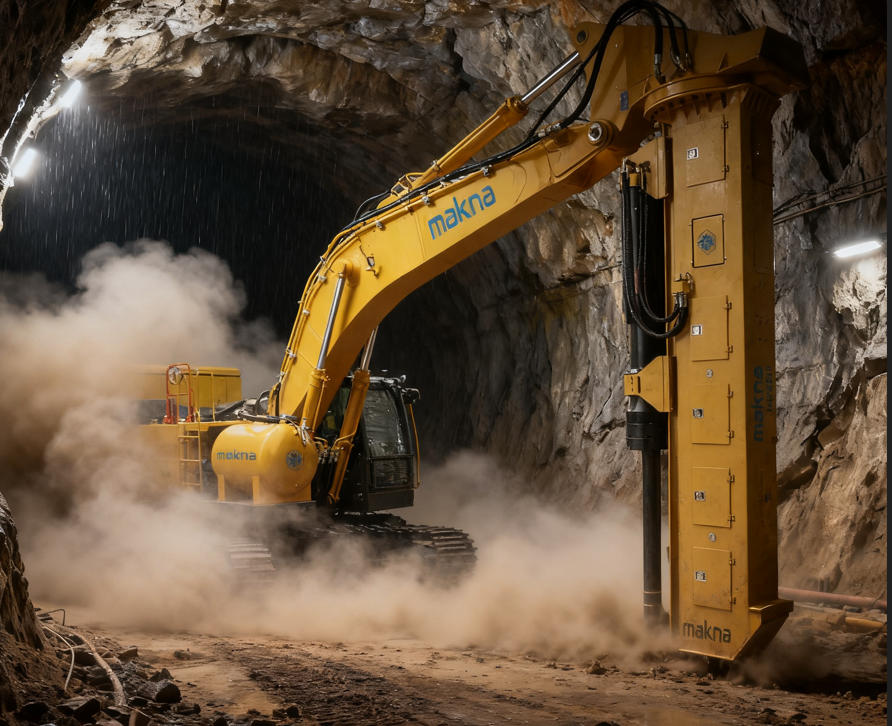

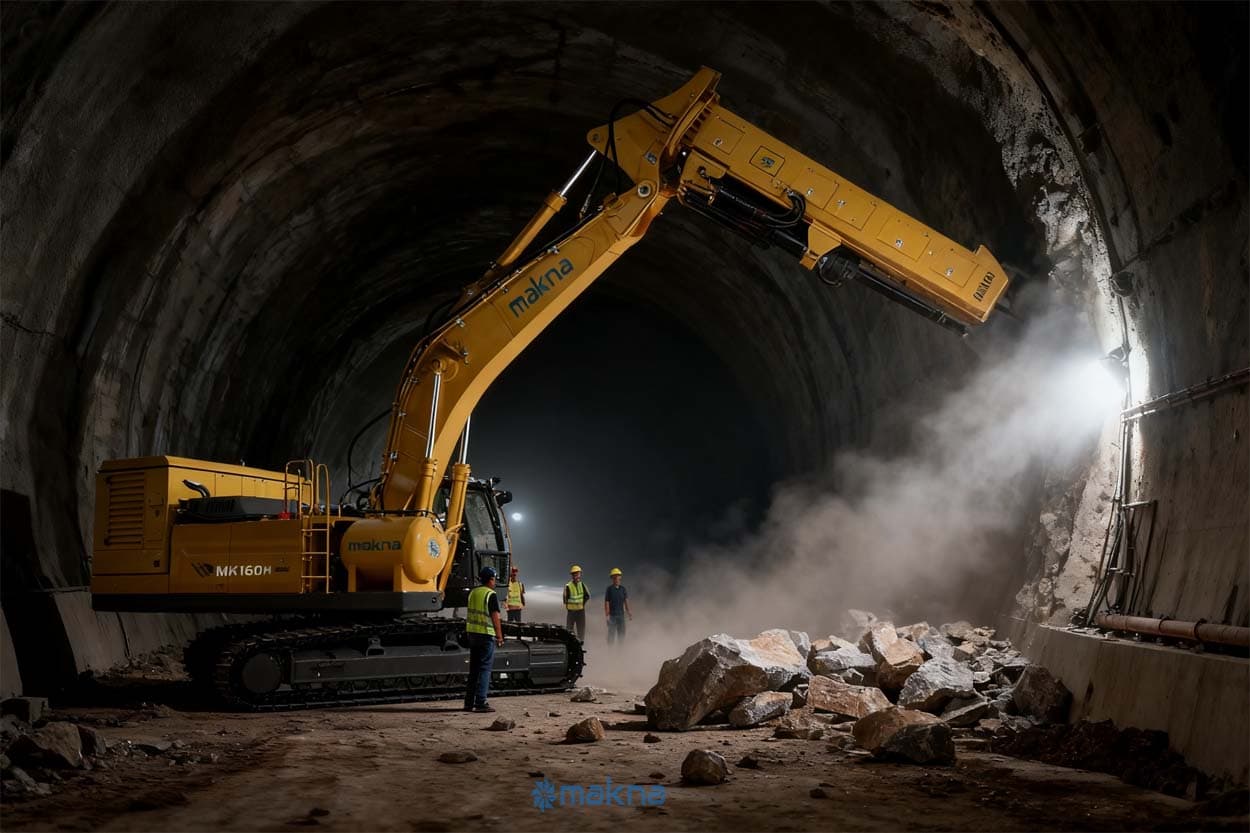

MAKNA MK160H Gallery 7

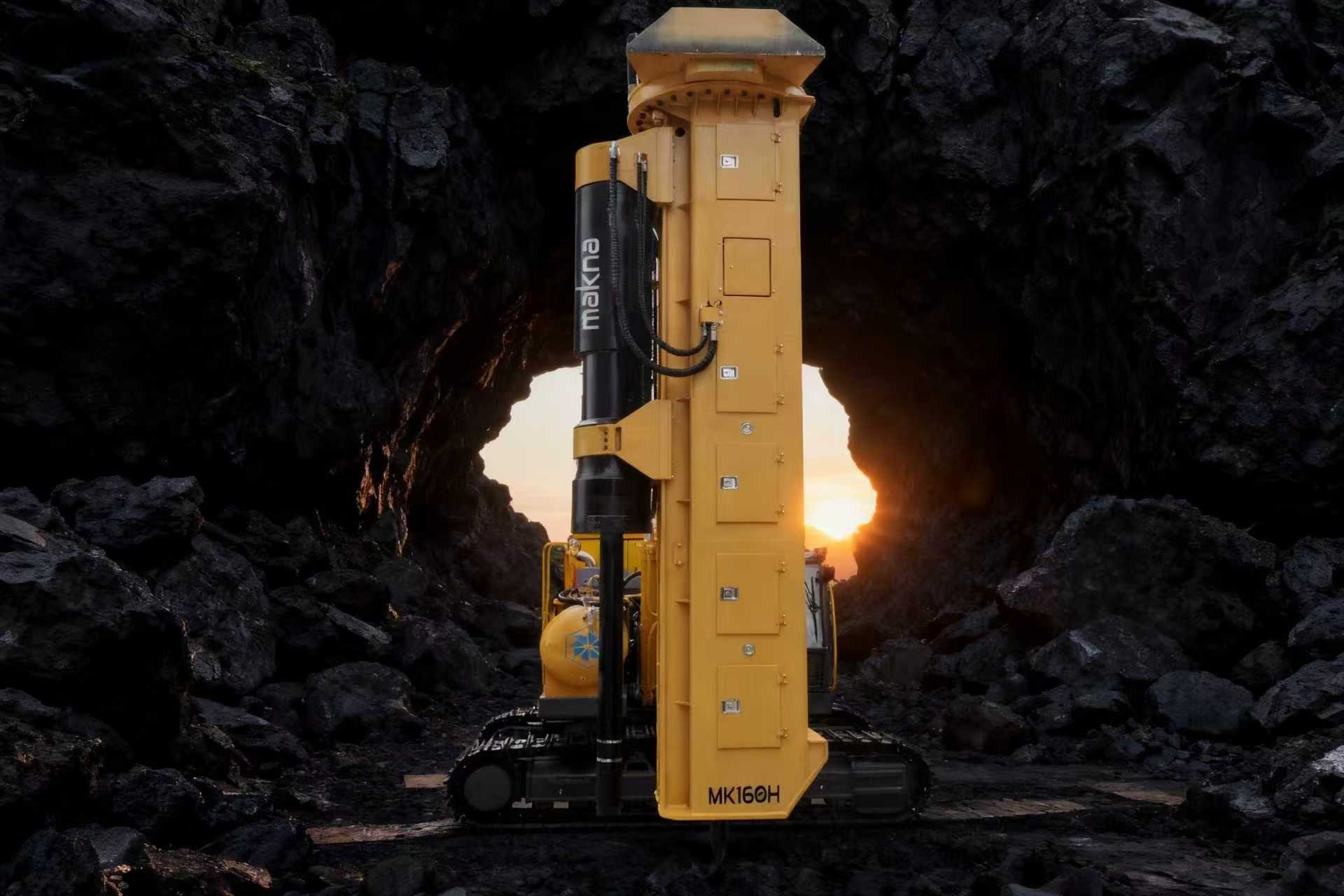

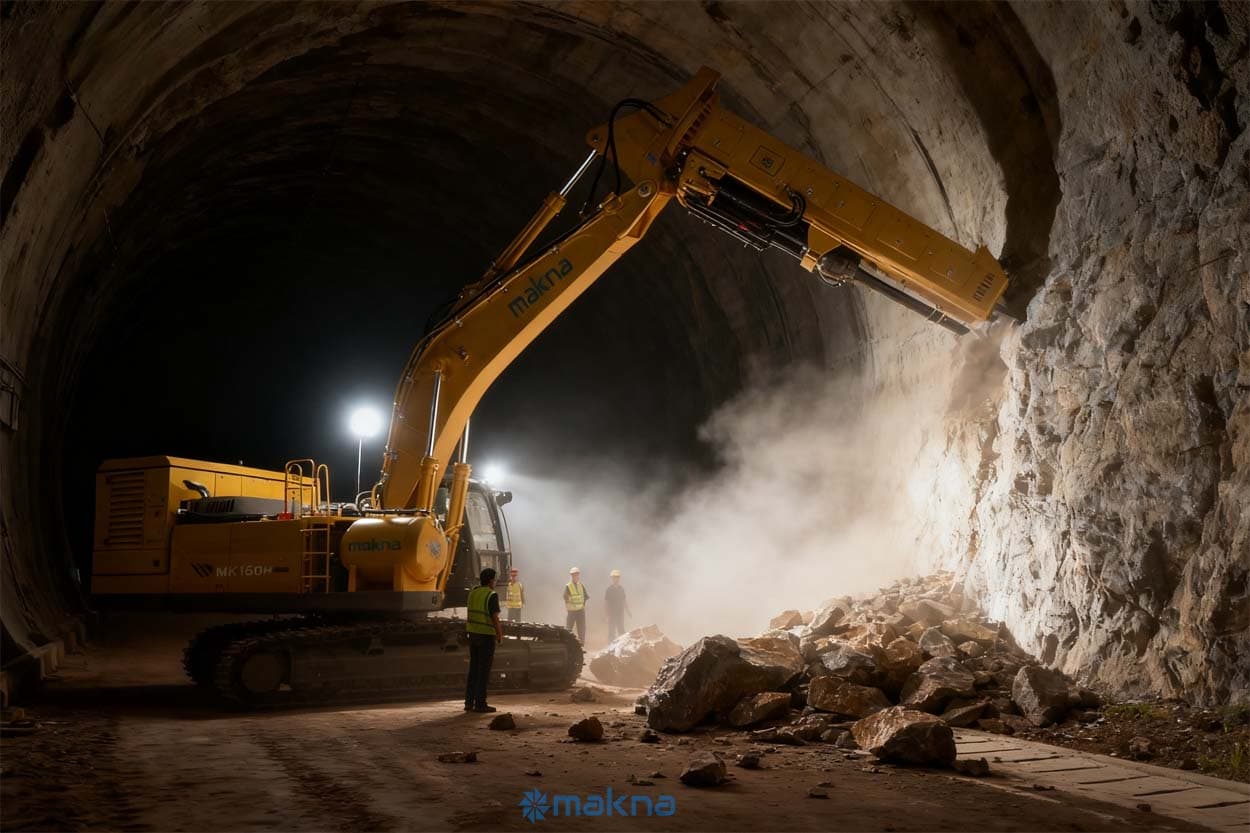

MAKNA MK160H Gallery 8

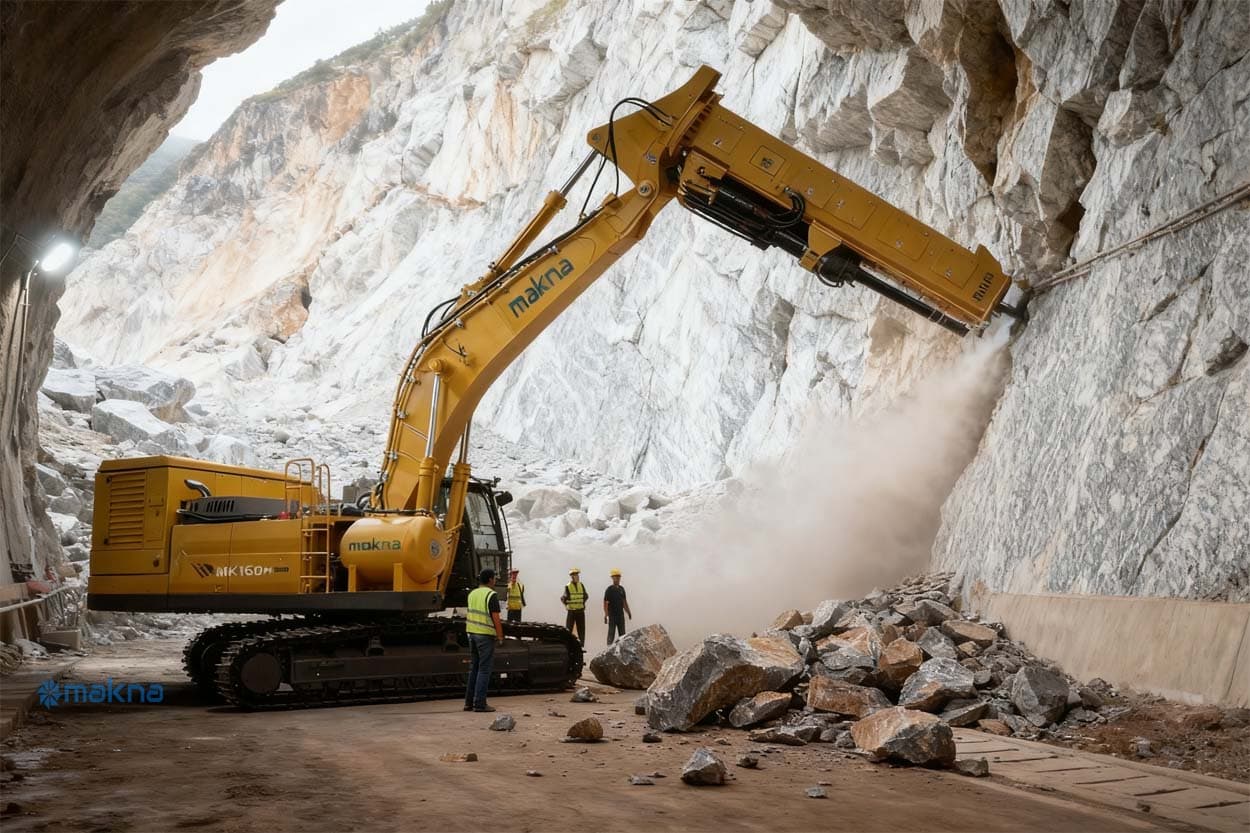

MAKNA MK160H Gallery 9

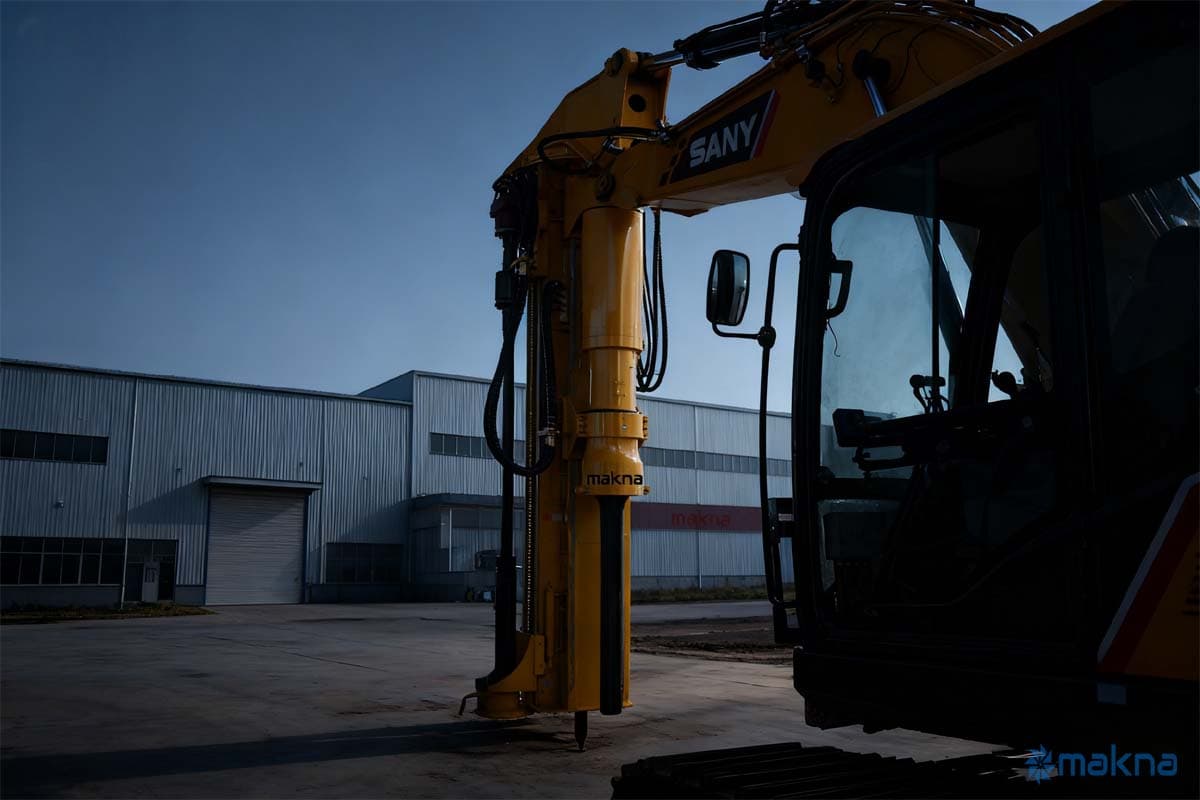

MAKNA MK160H Gallery 10
