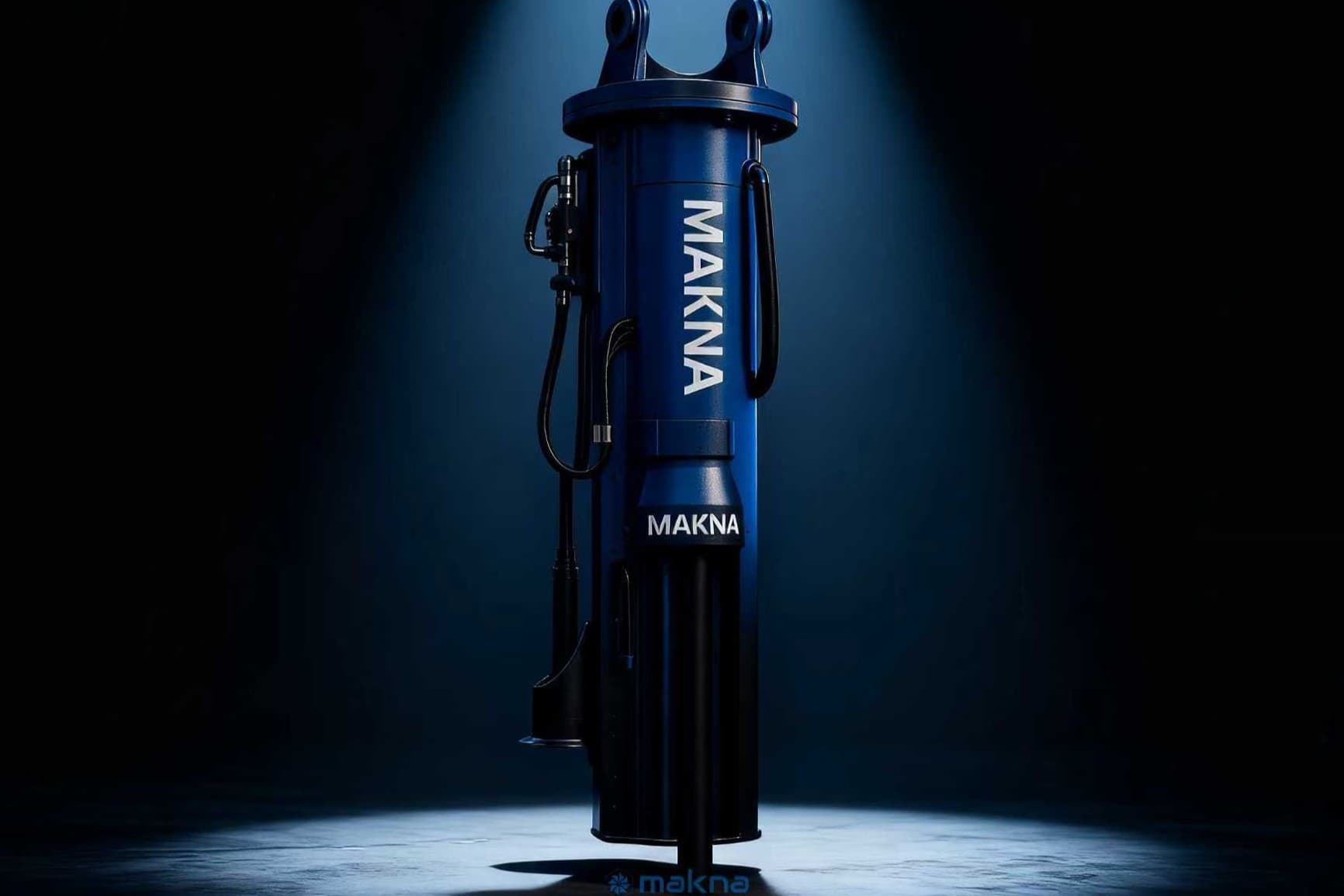

MK140H – Integrated Rock Drilling & Splitting Machine

MK140H-IRDSM

Mid-range integrated drilling & splitting system built for higher penetration rates and stronger splitting force on larger sites.

  • • Non-blasting splitting for sensitive zones
  • • 1 m/min drilling speed* with dust control

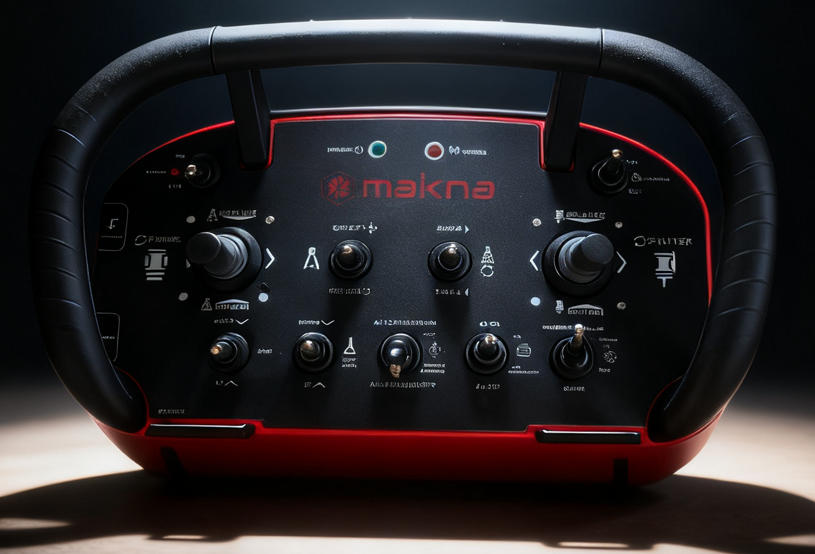

  • • Wireless remote (Basic) with safety interlocks
  • • 360° slewing; quick change pin-shaft mount
  • • Optimized hydraulic flow for stable duty cycles
  • *Under ideal conditions

Technical Specifications

ParameterMAKNA MK140H
excavator30-38T
dimensions4200 × 1580 × 1850 mm
weight6.5T
diameter130 mm
depth1.6 m
speed0.8 m/min
force6000 tons
wedge1400 mm
distance26 mm
time9 sec
energy400 J
pressure180 bar
flow350 L/min
power65 kW
rated40 MPa
air8 L/min

Gallery

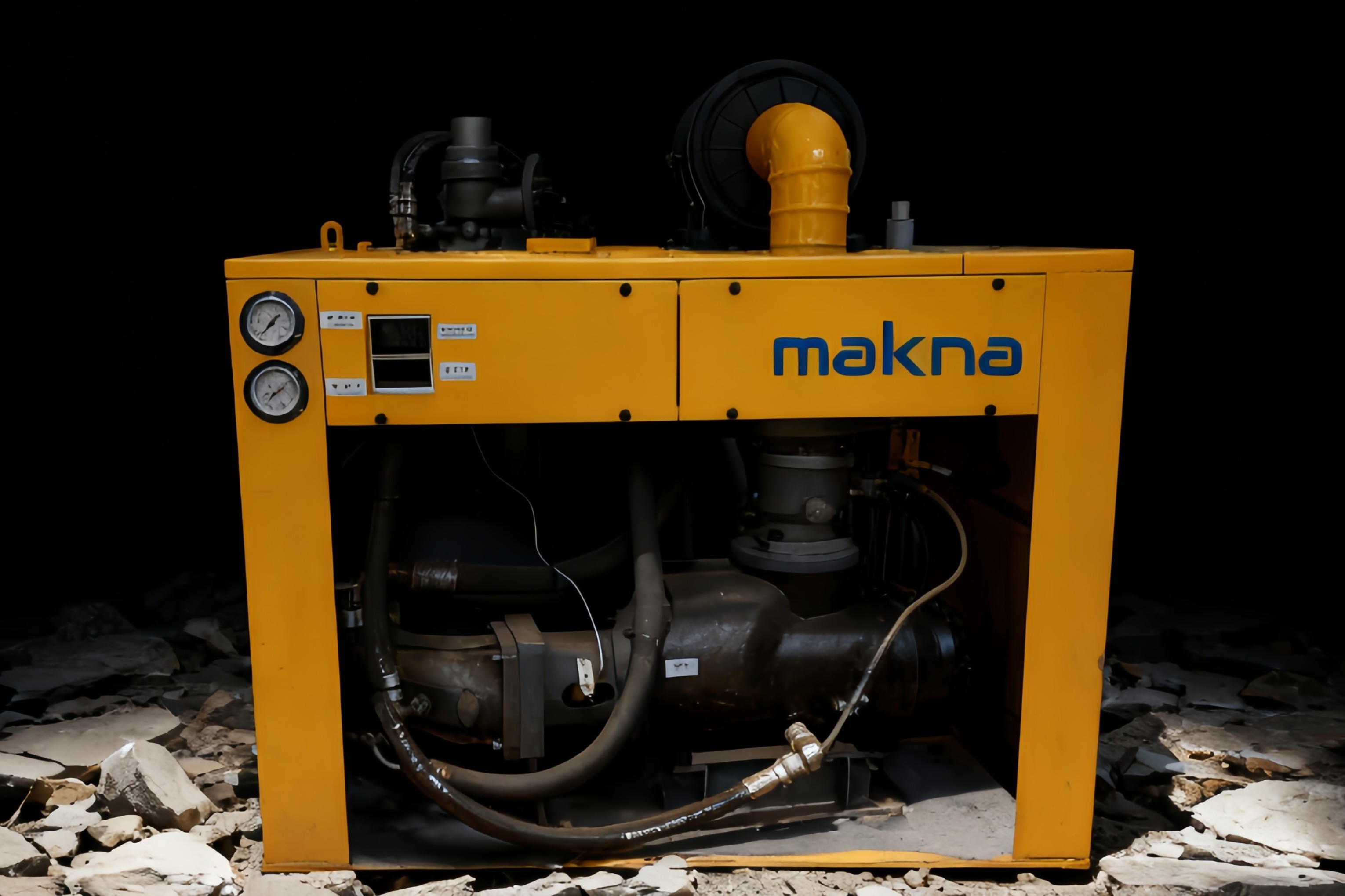

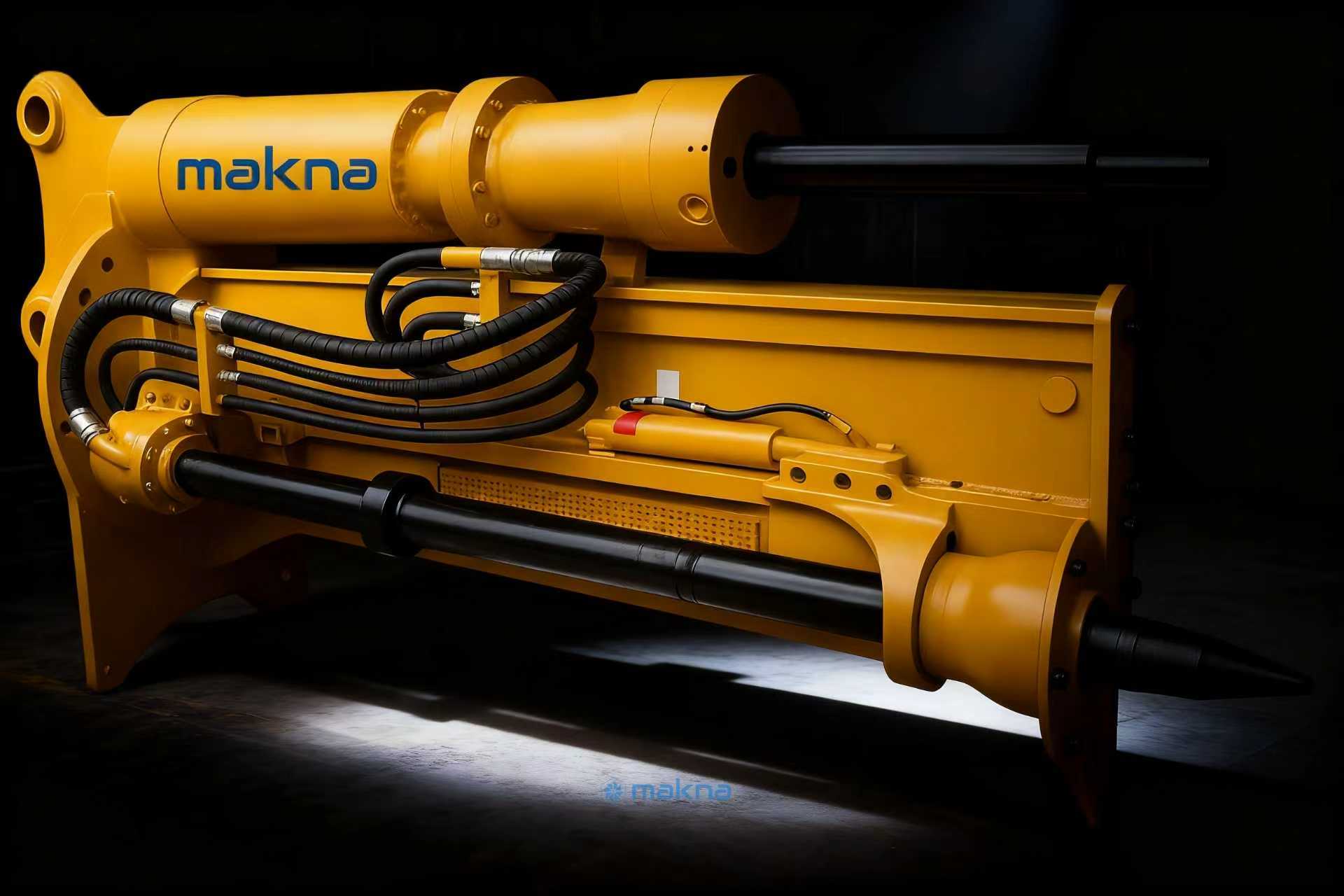

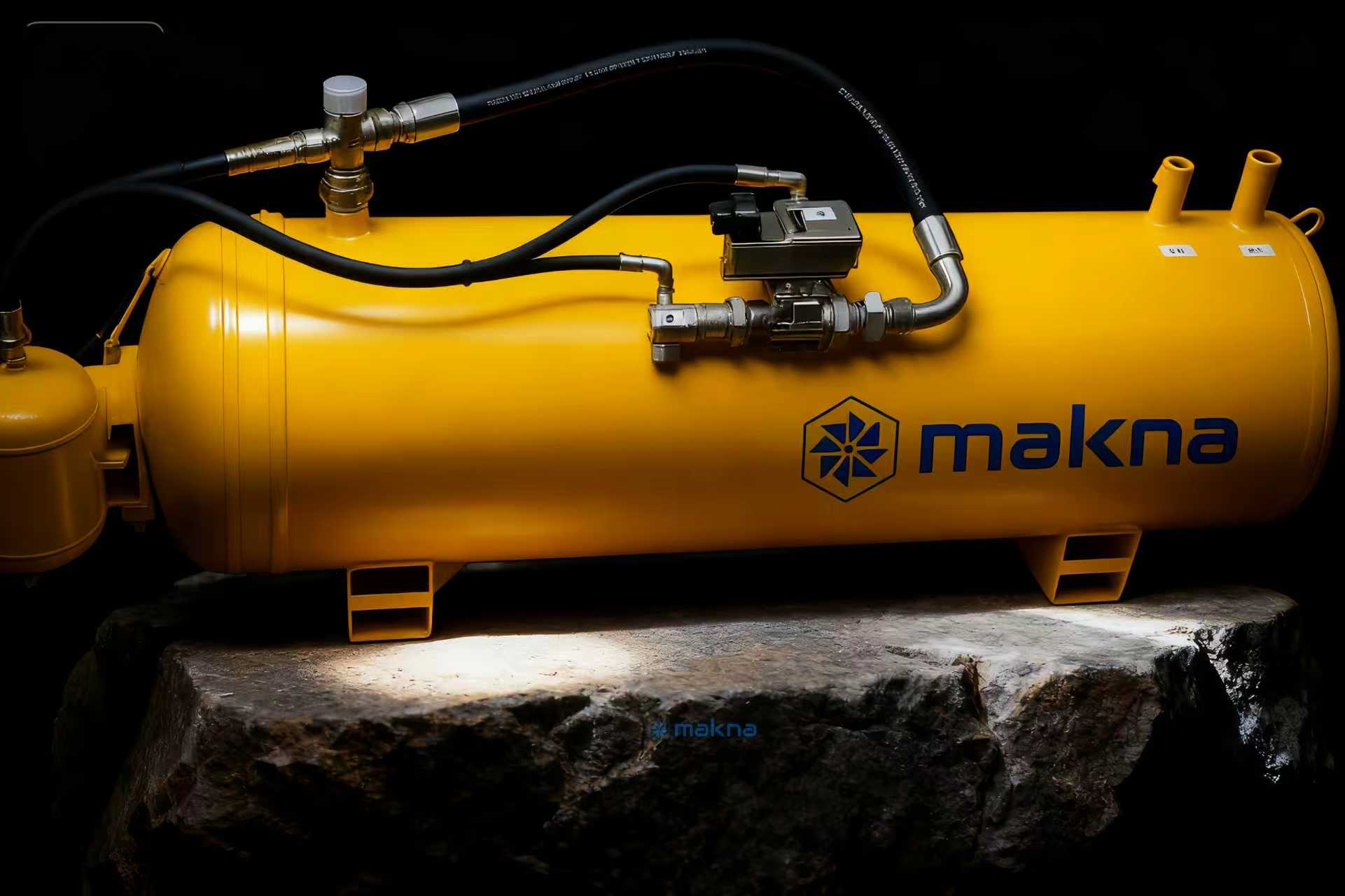

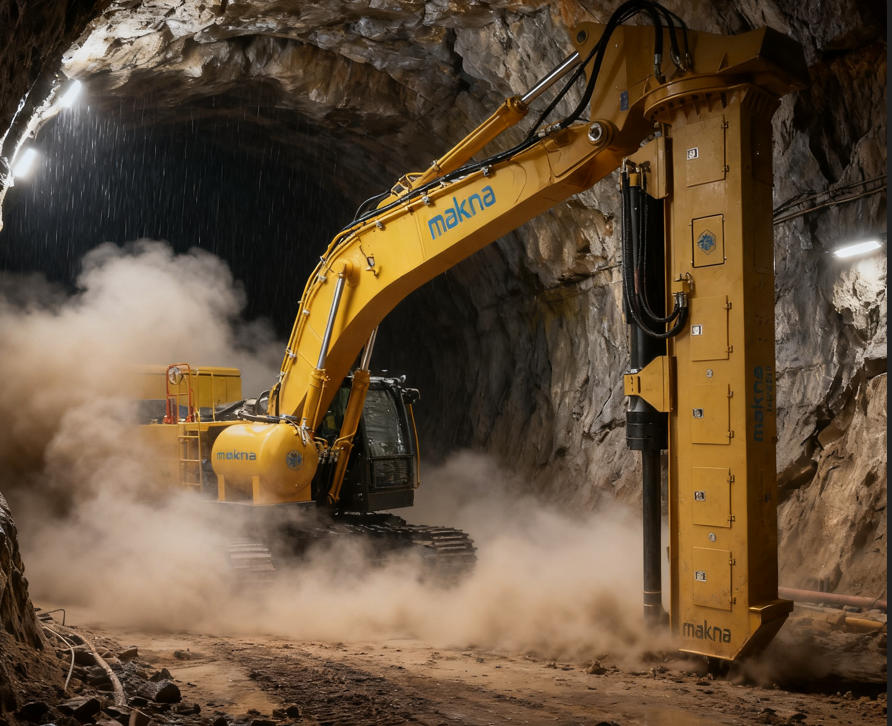

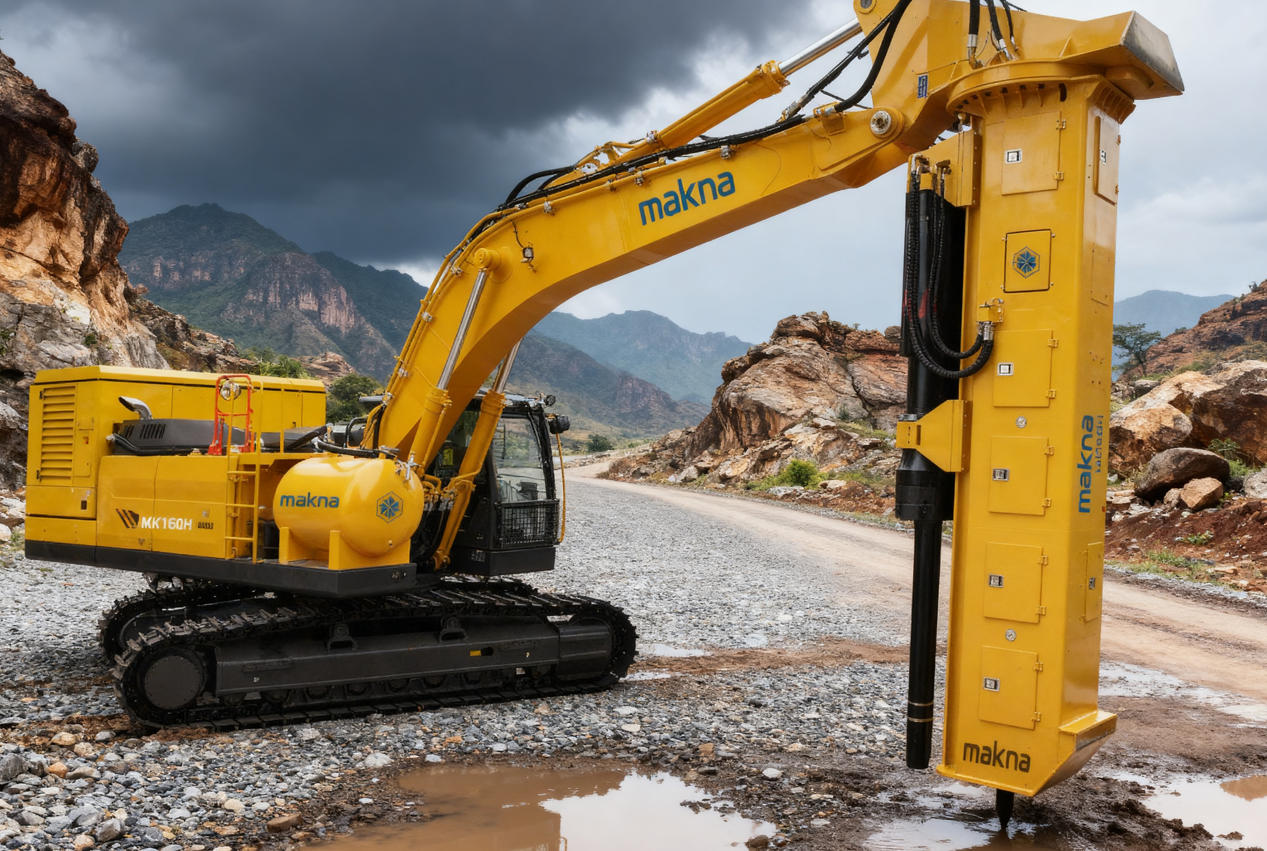

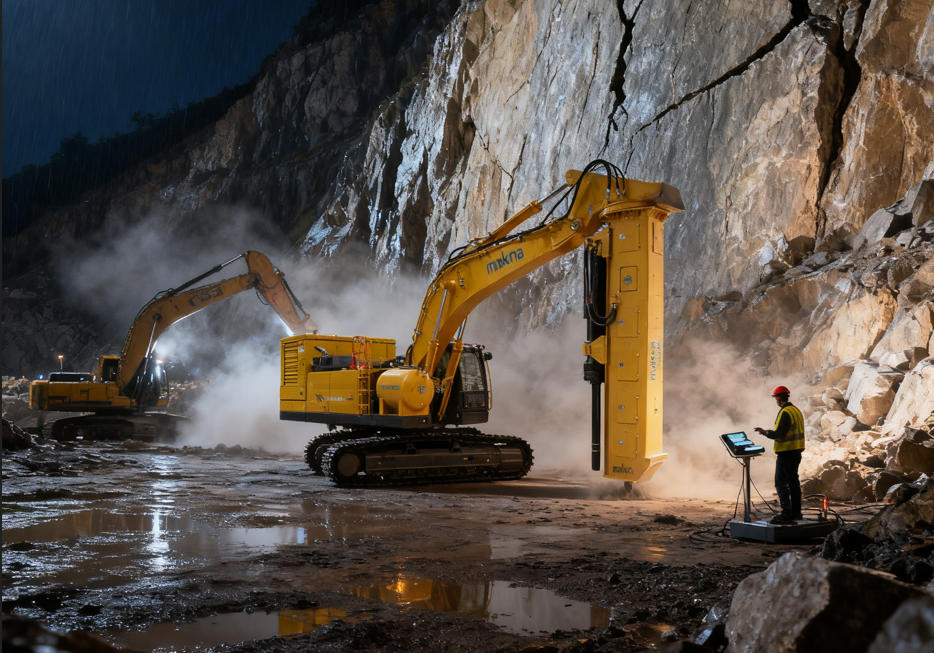

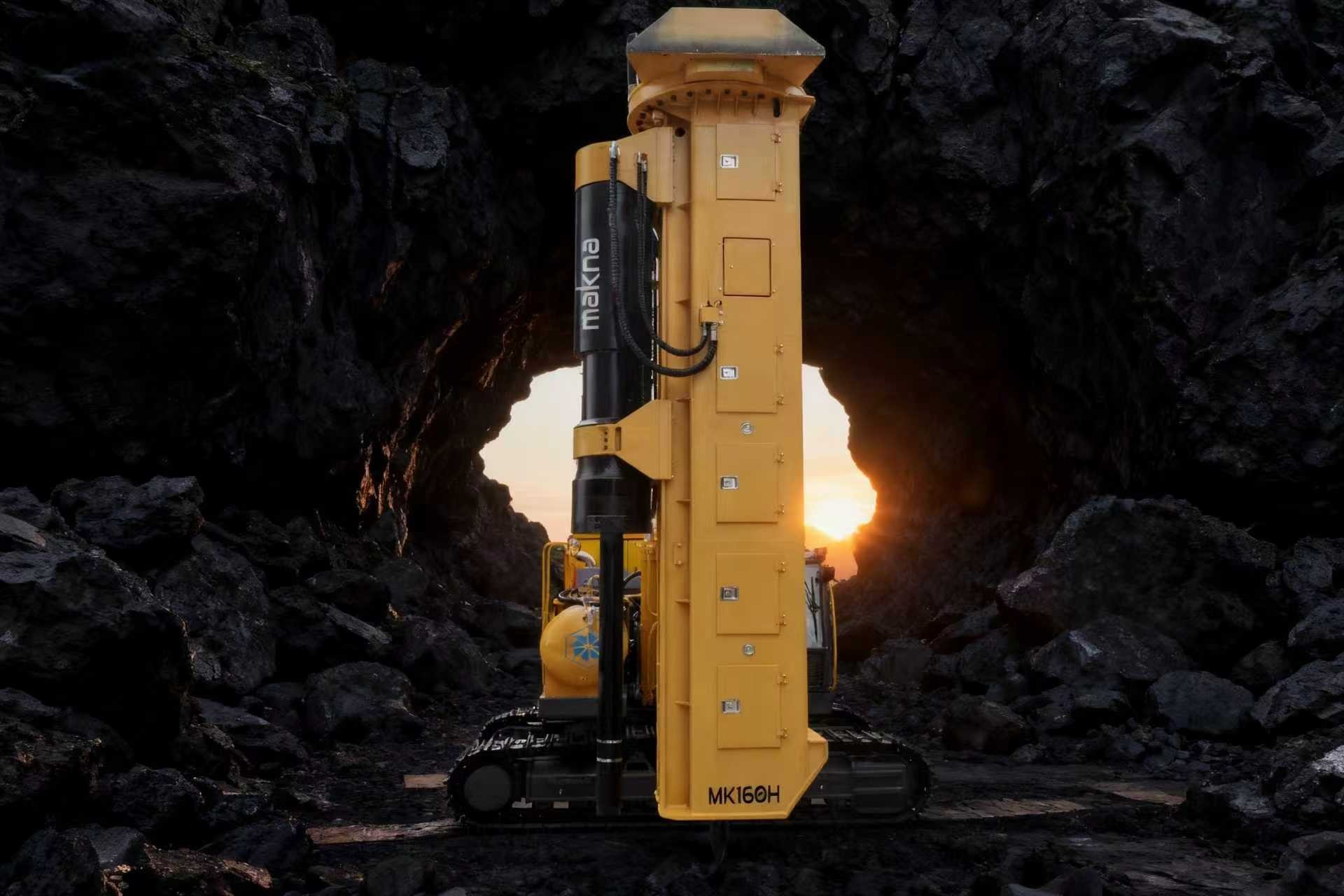

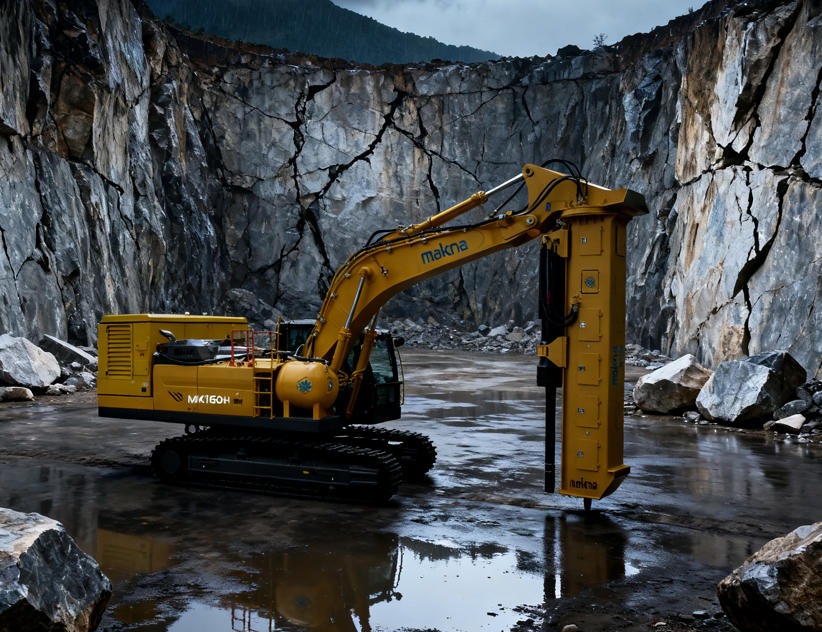

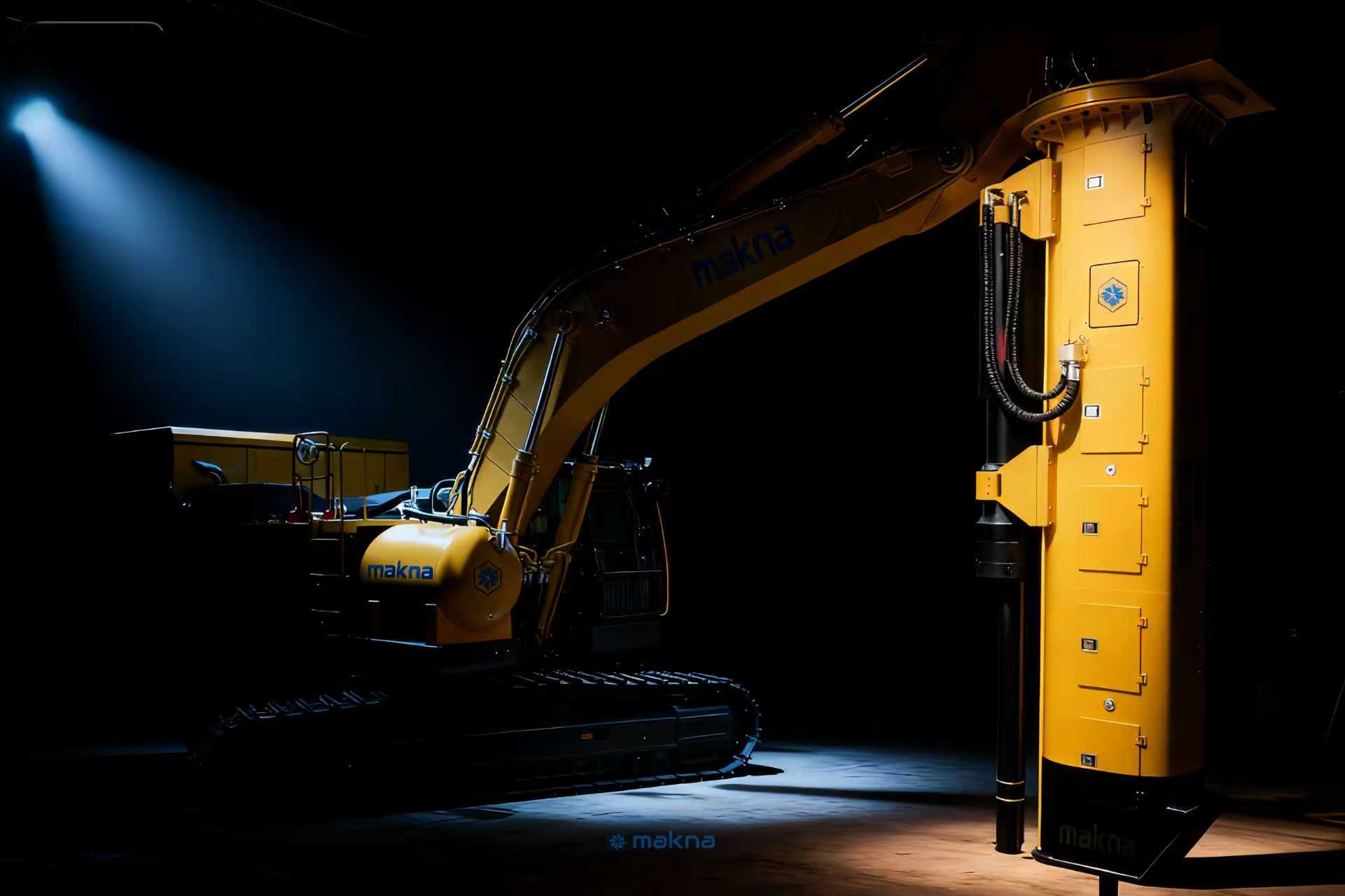

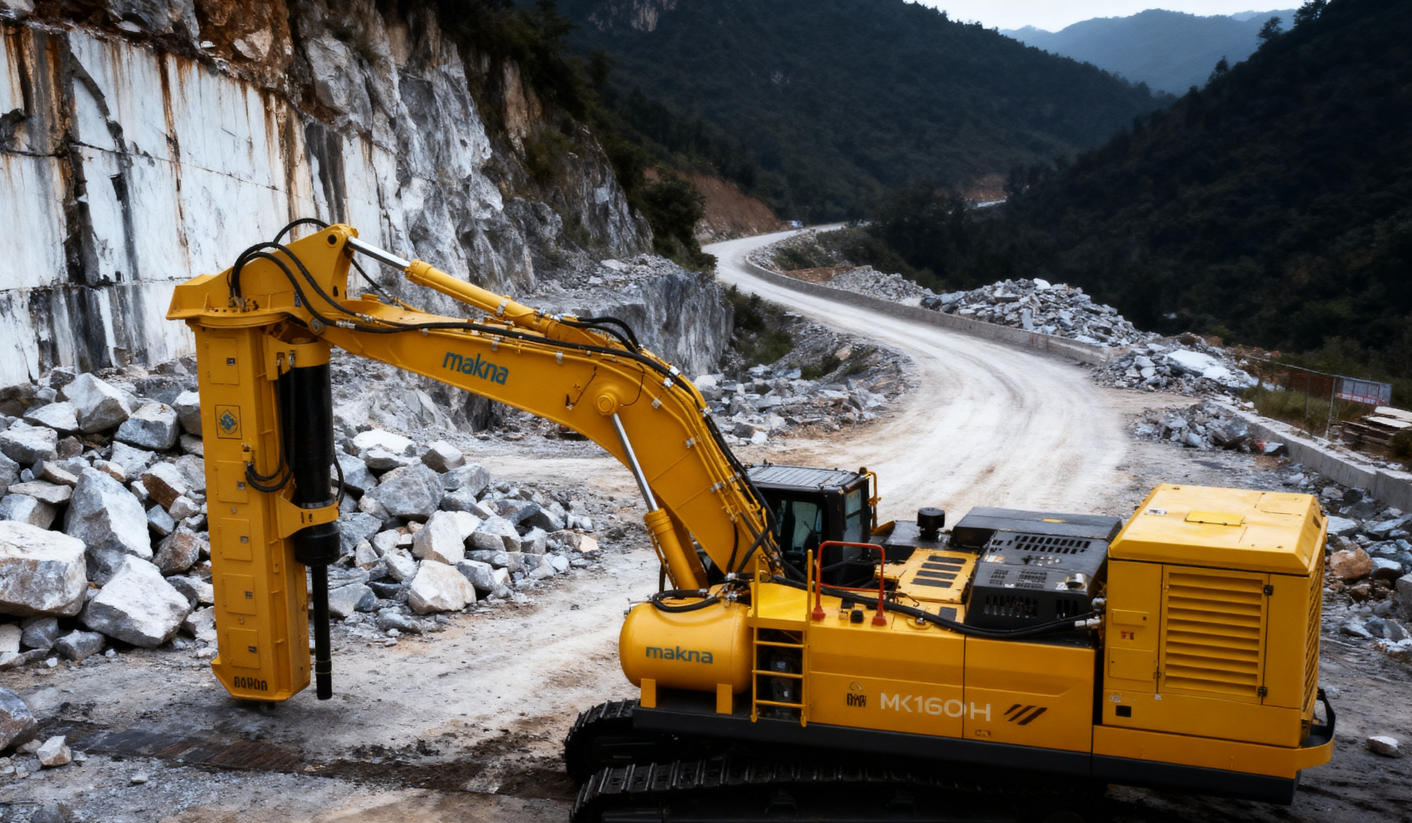

MAKNA MK140H Gallery 1

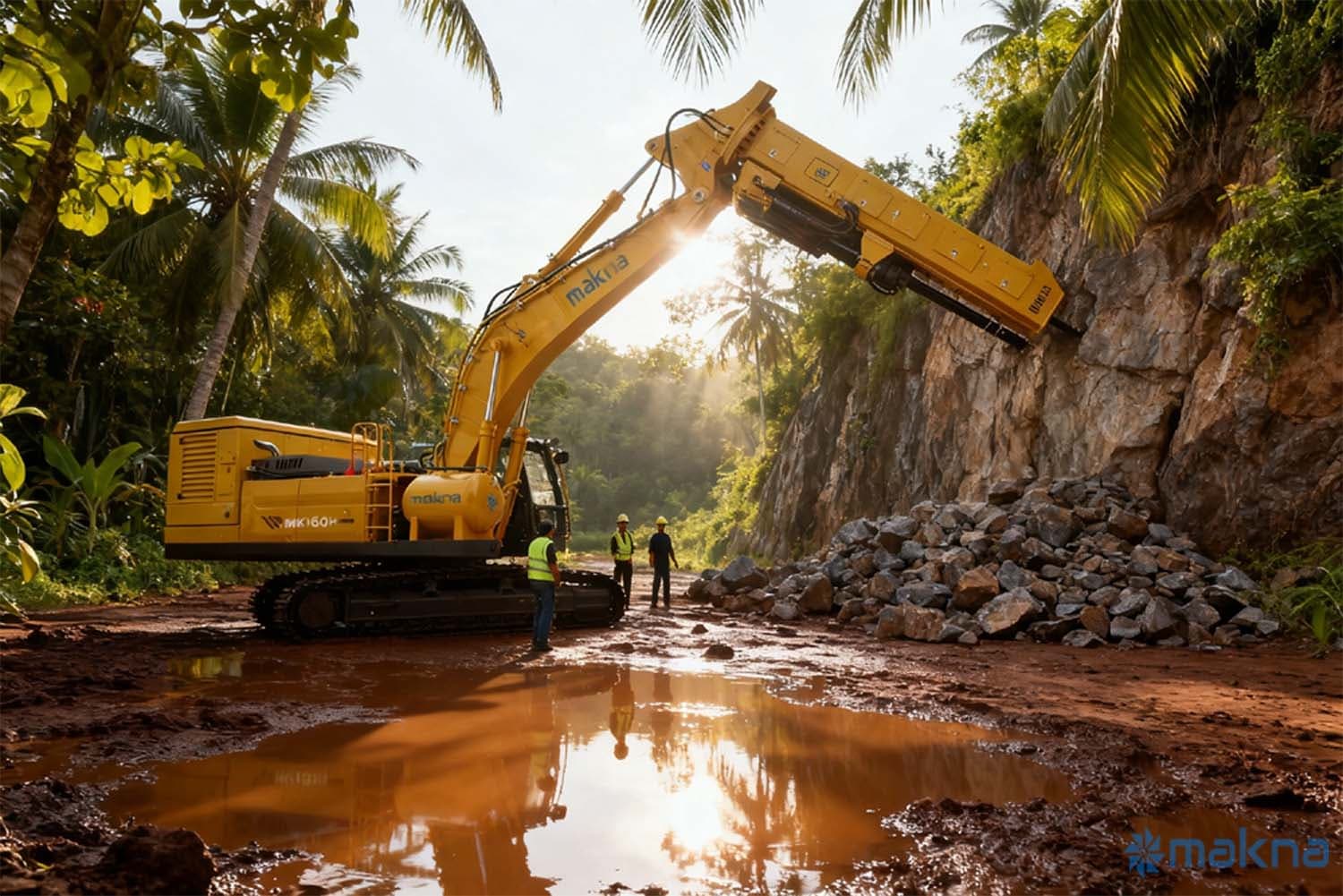

MAKNA MK140H Gallery 2

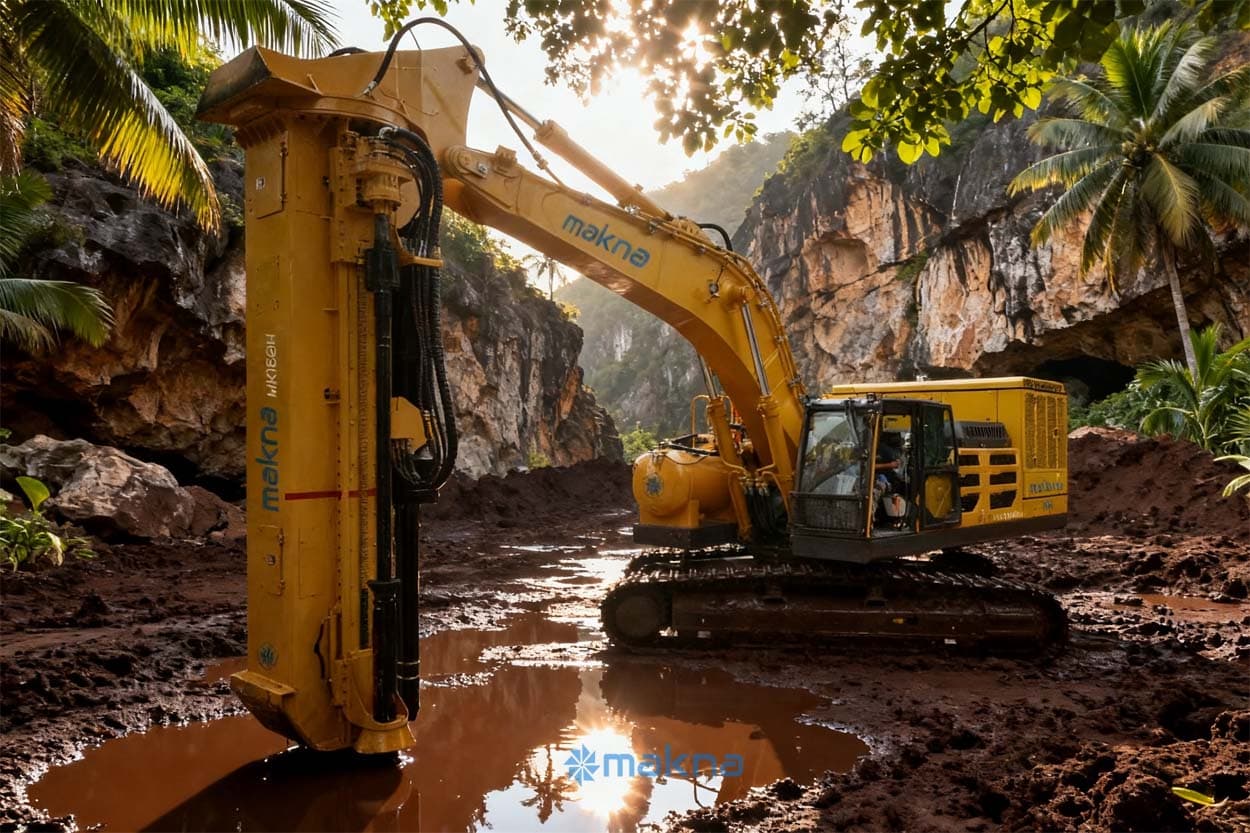

MAKNA MK140H Gallery 3
MAKNA MK140H Gallery 4

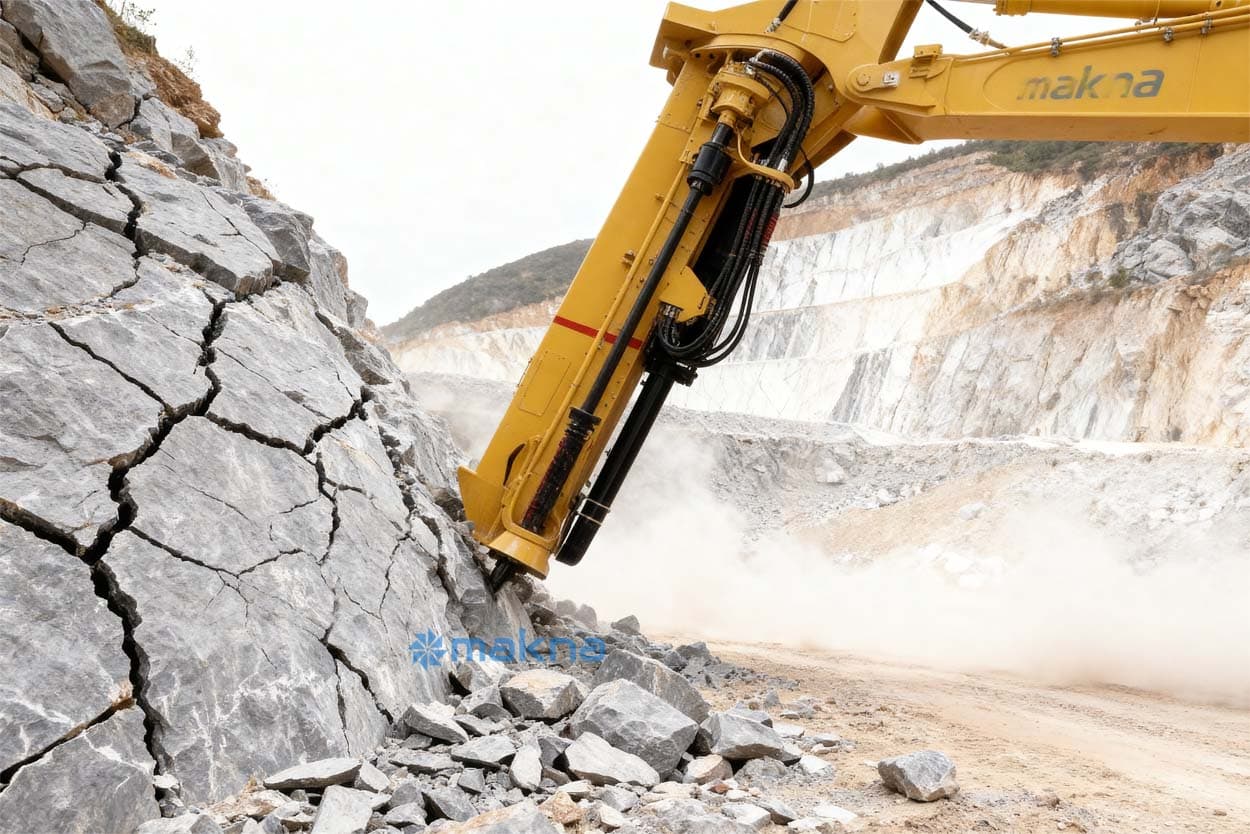

MAKNA MK140H Gallery 5
MAKNA MK140H Gallery 6
MAKNA MK140H Gallery 7
MAKNA MK140H Gallery 8

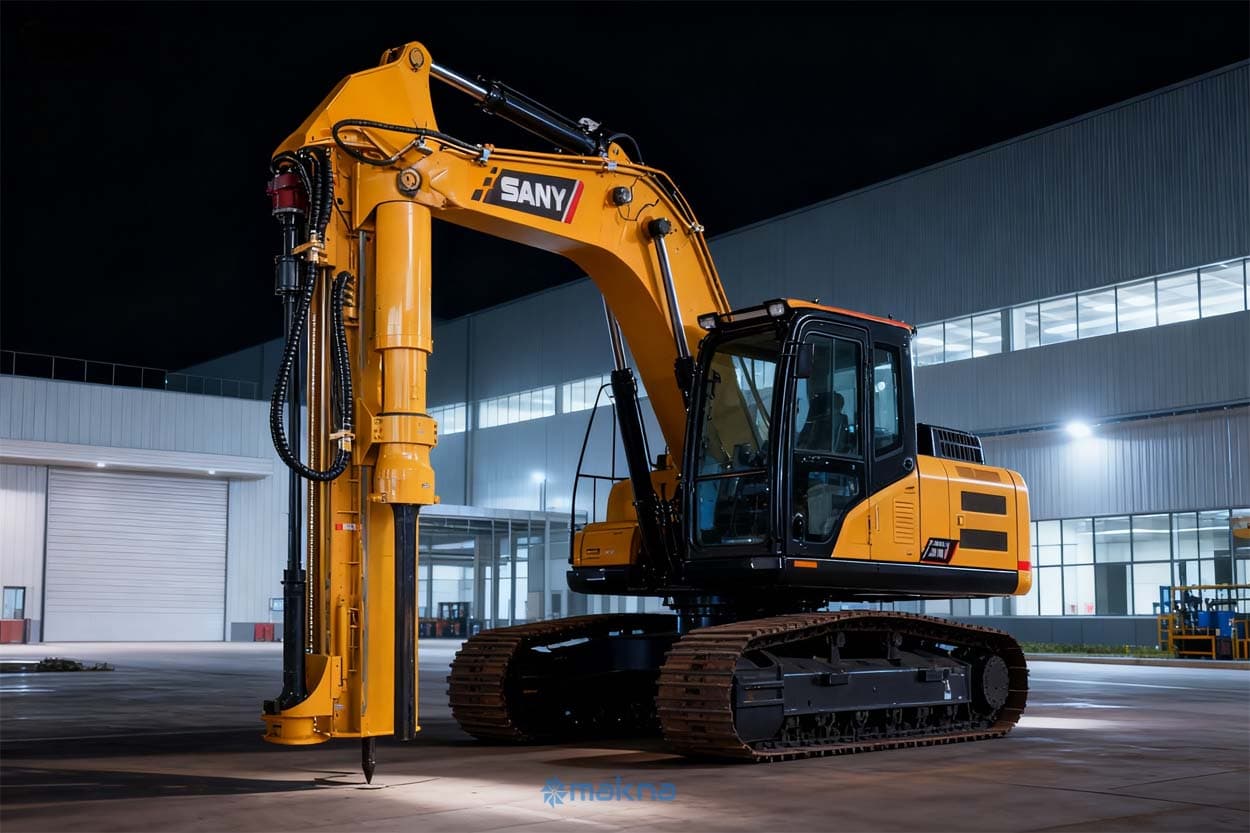

MAKNA MK140H Gallery 9

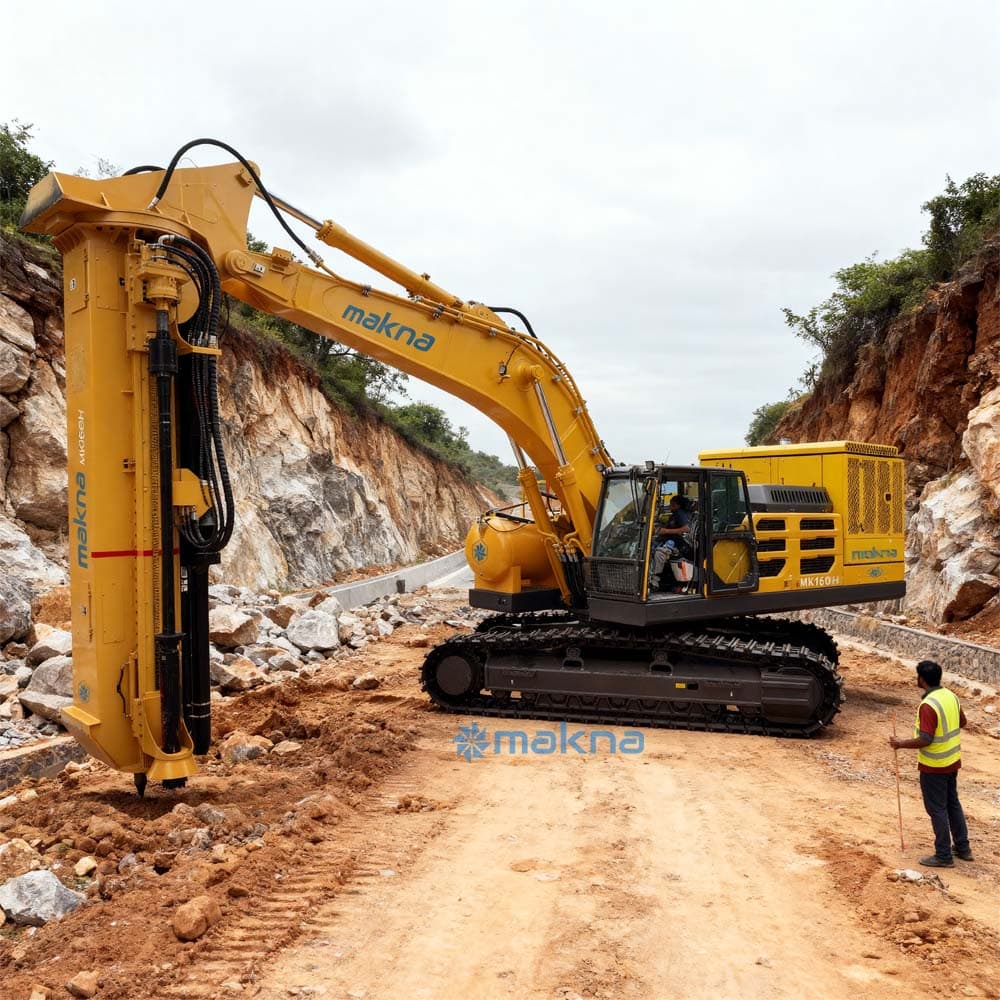

MAKNA MK140H Gallery 10

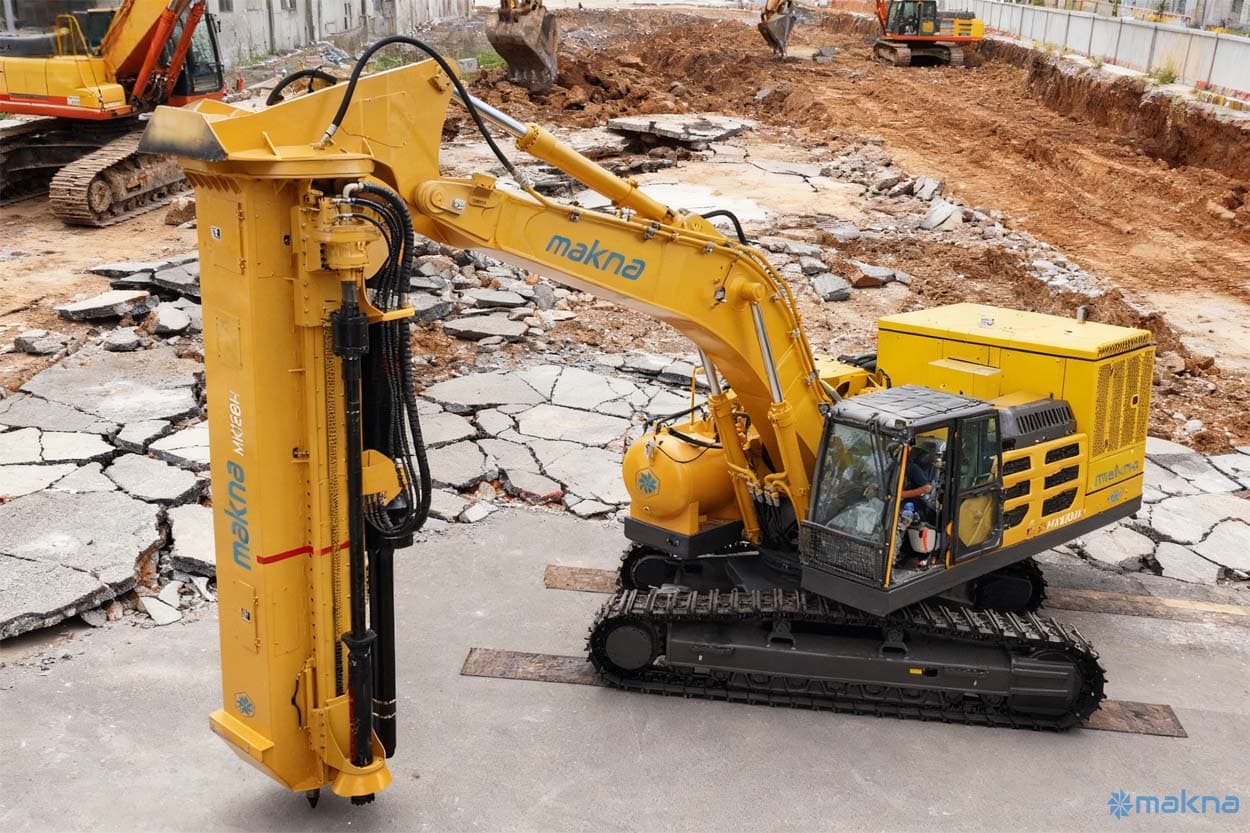

MAKNA MK140H Gallery 11

Product Demo Video
