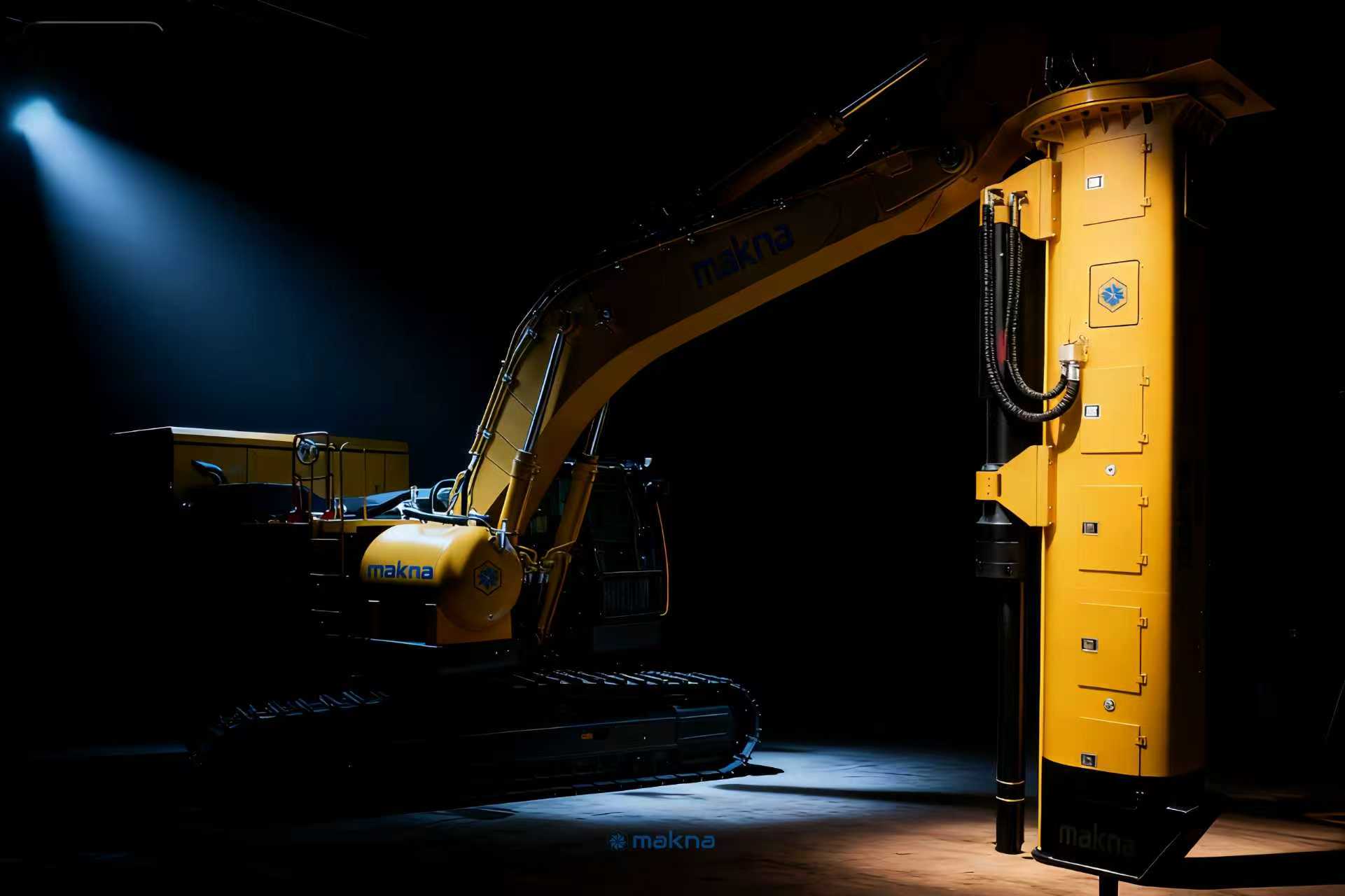

MK120H – Integrated Rock Drilling & Splitting Machine

MK120H-IRDSM

Standard version of our integrated drilling & splitting machine, engineered for efficient excavation with safety, speed, and precision.

  • • Non-blasting splitting — reduced vibration & dust
  • • 1 m/min drilling speed* with optimized hydraulic flow
  • • 360° frame slewing for flexible positioning

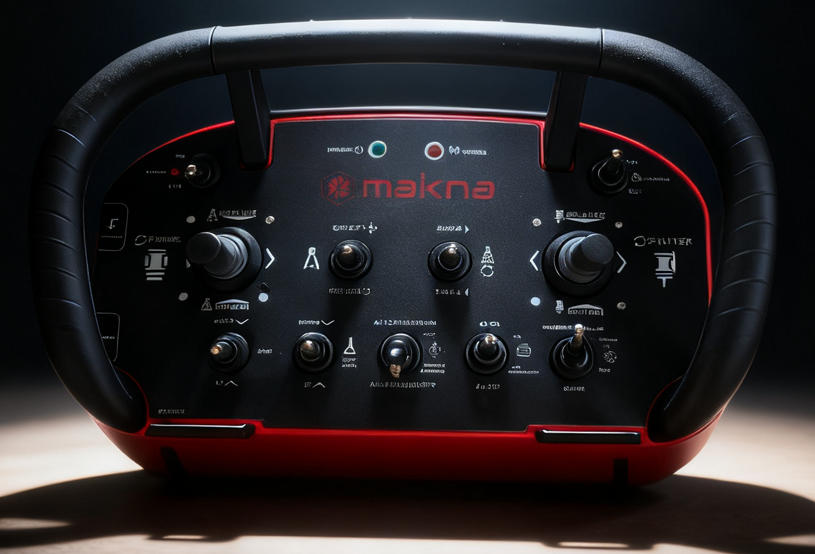

  • • Wireless remote (Basic) with core safety interlocks
  • • Dust removal system; pin-shaft mount for quick setup
  • *Under ideal conditions

Technical Specifications

ParameterMAKNA MK120H
excavator20–30T
dimensions4200 × 1560 × 1700 mm
weight4.28T
diameter115 mm
depth1.4 m
speed0.8 m/min
force5000 tons
wedge1100 mm
distance25 mm
time8 sec
energy350 J
pressure180 bar
flow180 L/min
power25 kW
rated40 MPa

Gallery

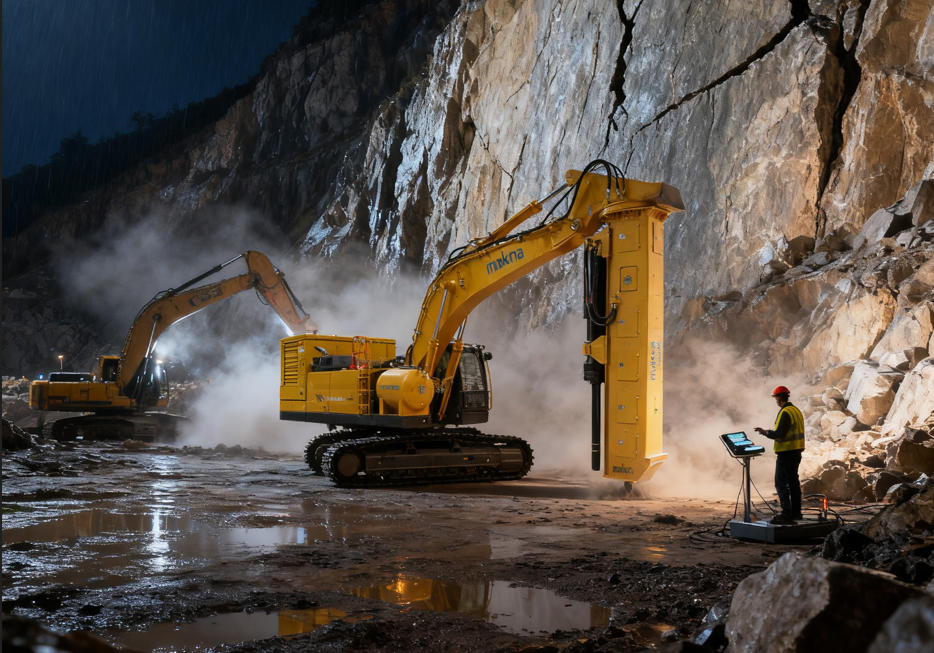

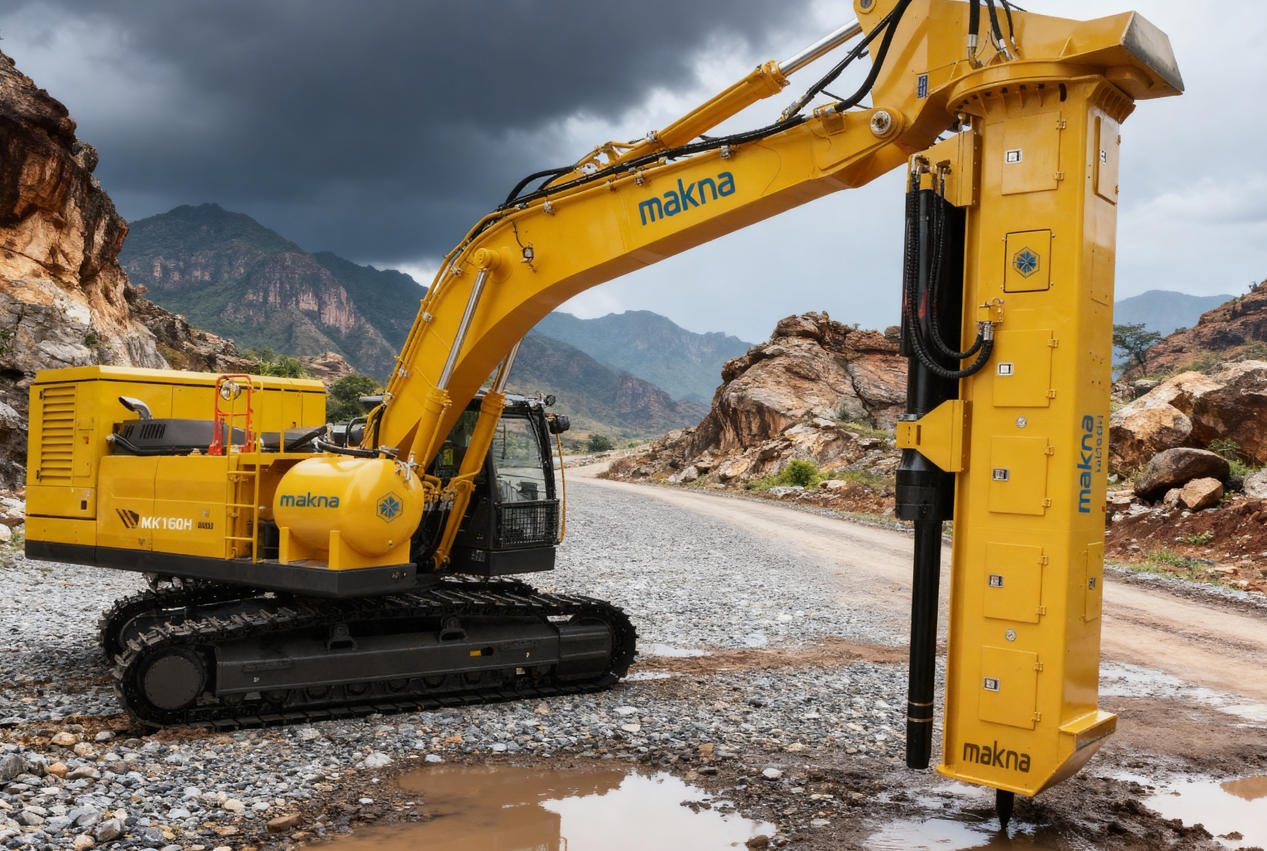

MAKNA MK120H Gallery 1
